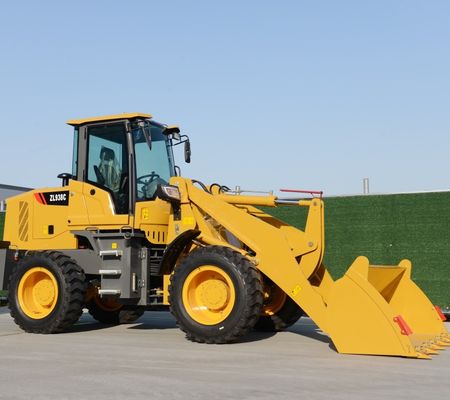

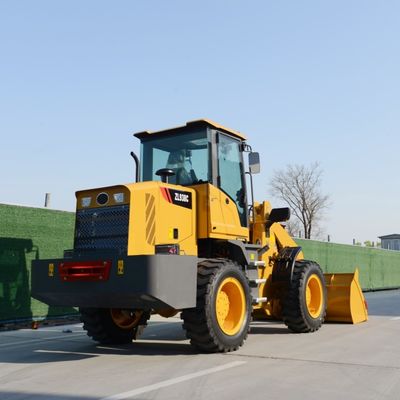

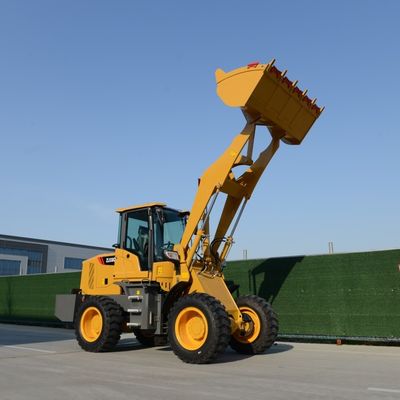

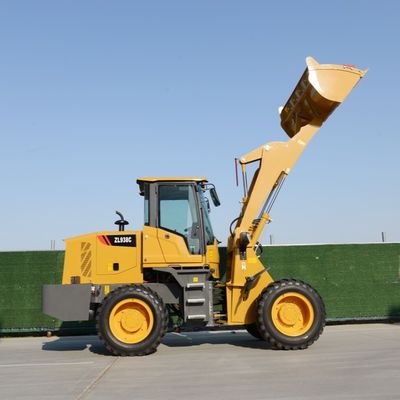

Wheel Loader Front End Loader Wheel Loader For Construction Works With Yuchai Engine
| Place of Origin | China |
|---|---|
| Brand Name | Jawell |
| Certification | CE ISO GS EMC |
| Model Number | JW-RG-938C |
| Minimum Order Quantity | 1piece |
| Price | 12440$-129400$ |
| Packaging Details | Stadard |
| Delivery Time | 25-35days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 20pieces/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | YUCHAI | Certification | CE ISO GS EMC |
|---|---|---|---|
| Bucket Capacity | 1.4m³ | Discharge Distance | 850MM |
| Discharge Angle | 34.5° | Maximum Rising Power | 28KN |
| Rated Load Mass | 2200KG | Maximum Travel Speed | 32KM |
| Highlight | Construction Works Wheel Loader,Yuchai Engine Wheel Loader,Front End Loader Wheel Loader |
||
Product Description
Product Description:
Shandong Jawell International Trade Co., Ltd. specializes in wheel loaders, forklift loaders, etc., widely used in major logistics transportation industries; All of our products have a compact structure, suitable for driving force, stable and reliable performance, comfortable operation, high production efficiency, and have been highly recognized by users; We sincerely provide customers with satisfactory products and high-quality services, and warmly welcome you to negotiate cooperation.
Technical Parameters:
| Machine parameter | |
| item | argument |
| (MM)Minimum turning radius | 5750 |
| (°)Theoretical climb Angle | 35 |
| (KM)Maximum travel speed | 32 |
| (KM)Minimum travel speed | 8 |
| (MM)Maximum unloading height | 3600 |
| (S)No-load lifting time | ≤5 |
| (S)No-load descent time | ≤4 |
| (S)Unloaded time | ≤1.5 |
| (S)Ternary sum | ≤10.5 |
| (MM)wheelbase | 2550 |
| (MM)Discharge distance | 850 |
| (°)Discharge Angle | 34.5 |
| Machine parameter | |
| item | argument |
| (MM)Body length | 6100 |
| (MM)Body width | 2100 |
| (MM)Body height | 2950 |
| (MM)Minimum ground clearance | 380 |
| (MM)Wheel track | 1600 |
| (KG)Rated load mass | 2200 |
| (KG)Machine weight | 5700 |
| (MM)The bucket is long, deep and high | 2200/600/900 |
| (m³)Bucket capacity | 1.4 |
| (KN)Maximum rising power | 28 |
| (KN)Maximum tractive effort | 32 |
| (KN)Combined tractive force | 30 |
| Engine parameter | |
| item | argument |
| manufacturer | YUCHAI |
| Power (KW) | Frequency conversion 90 kW |
| Rated speed (r/min) | 2400 |
| Number of cylinders | 4 |
| Number of horizontal bar valves | 2 |
| Transmission system parameter | |
| item | argument |
| type | 280 double high low speed |
| Change gear | 4×4 |
| Braking form | Air brake |
| axle | Heavy wheel edge |
| Tyre type | 16/70-24 |
| (Mpa)Front wheel pressure | 0.33 |
| (Mpa)Rear wheel pressure | 0.3 |
| Steering system | |
| item | argument |
| type | Full hydraulic steering |
| (°)Steering Angle | 32.5 |
| (MPa)System operating pressure | 16 |
| Refueling capacity | |
| item | argument |
| (L)Theoretical fuel solvent | 78 |
| (L)Theoretical volume of hydraulic oil | 78 |
| (L)Bridge strip | 14 |
| (L)Engine oil | 6.5 |
| (L)Transmission gear oil | 24 |
| (L)Brake system | 3 |
Applications:
Packing and Shipping:
packaging
The loader will be carefully packaged to ensure safe delivery to our customers. The packaging will include:
Heavy duty cardboard box
Protective foam liner
Plastic packaging
an instruction manual
Shipping:
We provide global transportation services for loaders. Our shipping options include:
Standard transportation
express
air transport
ocean shipping
The transportation cost will vary depending on the selected destination and transportation method.
The loader will be carefully packaged to ensure safe delivery to our customers. The packaging will include:
Heavy duty cardboard box
Protective foam liner
Plastic packaging
an instruction manual
Shipping:
We provide global transportation services for loaders. Our shipping options include:
Standard transportation
express
air transport
ocean shipping
The transportation cost will vary depending on the selected destination and transportation method.
FAQ:
- Q: What is the brand name of this product?
A: The brand name of this product is Jawell. - Q: What is the model number of this product?
A: The model number of this product is JW-RG-938C - Q: Where is this product manufactured?
A: This product is manufactured in Shandong, China. - Q: Does this product have CE certification?
A: Yes, this product is certified with CE. - Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 unit.
