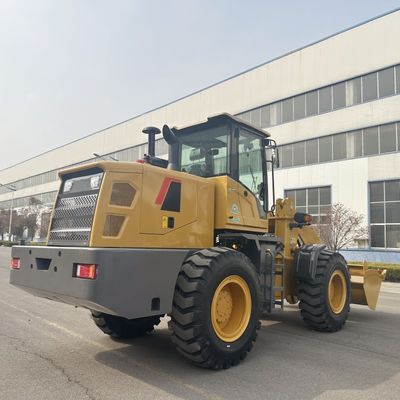

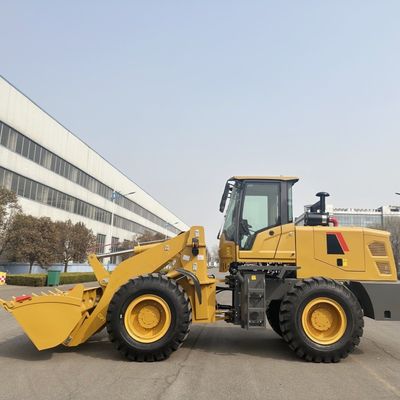

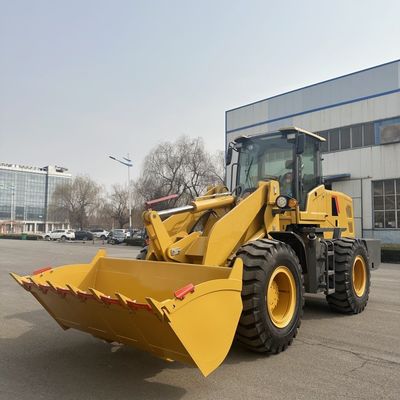

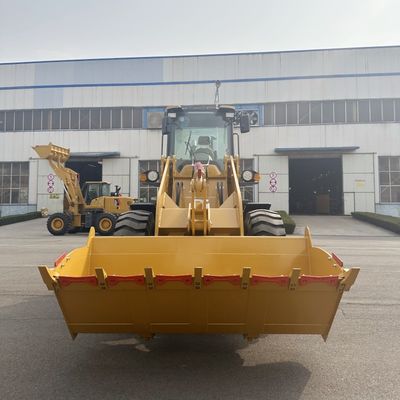

Wheel Loader With 4 × 4 Variable Speed Gears Front End Loader For Construction Engineering Wheel Loader

Place of Origin	China
Brand Name	Jawell
Certification	CE ISO GS EMC
Model Number	JW-RG-939
Minimum Order Quantity	1piece
Price	16805$-17205$
Packaging Details	Stadard
Delivery Time	25-35days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	20pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Engine	YUCHAI	Certification	CE ISO GS EMC
Bucket Capacity	1.7m³	Minimum Turning Radius	5850MM
Maximum Unloading Height	3700MM	Machine Weight	8100KG
Number Of Cylinders	6	Steering Angle	33.5°
Highlight	Construction Engineering Wheel Loader , Front End Loader Wheel Loader

Leave a Message

Product Description

Product Description:

The long wheelbase of wheel loaders improves traction and stability; By optimizing the power system and automatic hoist, the lifting capacity, excavation force, and work efficiency have been significantly improved; The dumping height and angle are large, meeting most emission requirements; Due to the wear resistance and impact resistance of the bucket, the cost is significantly reduced; Equipped with reinforced front and rear frames, the overload capacity and torsion coefficient have also been improved; In addition, due to the spacious and comfortable cabin space, the driver has a clear view during operation.

Technical Parameters:

Machine parameter
item	argument
(MM)Minimum turning radius	5850
(°)Theoretical climb Angle	35
(KM)Maximum travel speed	38
(KM)Minimum travel speed	8
(MM)Maximum unloading height	3700
(S)No-load lifting time	≤6
(S)No-load descent time	≤5
(S)Unloaded time	≤1.5
(S)Ternary sum	≤12.5
(MM)wheelbase	2850
(MM)Discharge distance	1000
(°)Discharge Angle	33.5

Machine parameter
item	argument
(MM)Body length	7100
(MM)Body width	2350
(MM)Body height	3100
(MM)Minimum ground clearance	420
(MM)Wheel track	1685
(KG)Rated load mass	2500
(KG)Machine weight	8100
(MM)The bucket is long, deep and high	2240/700/1100
(m³)Bucket capacity	1.7
(KN)Maximum rising power	33
(KN)Maximum tractive effort	38
(KN)Combined tractive force	30

Applications:

Wheel Loader With 4 × 4 Variable Speed Gears Front End Loader For Construction Engineering Wheel Loader 0

Packing and Shipping:

packaging
The loader will be carefully packaged to ensure safe delivery to our customers. The packaging will include:
Heavy duty cardboard box
Protective foam liner
Plastic packaging
an instruction manual
Shipping:
We provide global transportation services for loaders. Our shipping options include:
Standard transportation
express
air transport
ocean shipping
The transportation cost will vary depending on the selected destination and transportation method.

Wheel Loader With 4 × 4 Variable Speed Gears Front End Loader For Construction Engineering Wheel Loader 3

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is Jawell.
Q: What is the model number of this product?
A: The model number of this product is JW-RG-939
Q: Where is this product manufactured?
A: This product is manufactured in Shandong, China.
Q: Does this product have CE certification?
A: Yes, this product is certified with CE.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 unit.
