Flexible Operation Of Small Wheel Loader Front-End Loader

  • Flexible Operation Of Small Wheel Loader Front-End Loader
  • Flexible Operation Of Small Wheel Loader Front-End Loader
  • Flexible Operation Of Small Wheel Loader Front-End Loader
  • Flexible Operation Of Small Wheel Loader Front-End Loader
Place of Origin China
Brand Name Jawell
Certification CE ISO GS EMC
Model Number JW-RG-ZL-926
Minimum Order Quantity 1piece
Price 8386$-8836$
Packaging Details Stadard
Delivery Time 25-35days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 20pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Engine Yunnei Certification CE ISO GS EMC
Bucket Capacity 0.7m³ The Bucket Is Long, Deep And High 1800.450.860MM
Power 36.8KW Theoretical Fuel Solvent 55L
Rated Speed (r/min) 2400 Machine Weight 3500KG
Highlight

Small Wheel Loader

,

Flexible Operation Front-End Loader

,

Small Wheel Loader Front-End Loader
Leave a Message
Product Description

Product Description:

The assembly process of a loader mainly includes chassis articulation, power and dual variable system assembly, transmission system assembly, operating device assembly, accessory assembly, and circuit connection. Adopting industry-leading flexible assembly lines, optimizing process routes, and effectively improving assembly productivity.

Technical Parameters:

Machine parameter
item argument
(MM)Minimum turning radius 4700
(°)Theoretical climb Angle 15
(KM)Maximum travel speed 32
(KM)Minimum travel speed 8
(MM)Maximum unloading height 3000
(S)No-load lifting time ≤4.3
(S)No-load descent time ≤2.6
(S)Unloaded time ≤1.2
(S)Ternary sum ≤8.1
(MM)wheelbase 2100
(MM)Discharge distance 700
(°)Discharge Angle 35.1

Machine parameter
item argument
(MM)Body length 5200
(MM)Body width 1850
(MM)Body height 2280
(MM)Minimum ground clearance 255
(MM)Wheel track 1500
(KG)Rated load mass 1500
(KG)Machine weight 3500
(MM)The bucket is long, deep and high 1800.450.860
(m³)Bucket capacity 0.7
(KN)Maximum rising power 22
(KN)Maximum tractive effort 28
(KN)Combined tractive force 26

Engine parameter
item argument
manufacturer yunnei
Power (KW) 36.8
Rated speed (r/min) 2400
Number of cylinders 4

Refueling capacity
item argument
(L)Theoretical fuel solvent 55
(L)Theoretical volume of hydraulic oil 55
(L)Bridge strip 14
(L)Engine oil 6.5
(L)Transmission gear oil 24
(L)Brake system 3

Applications:

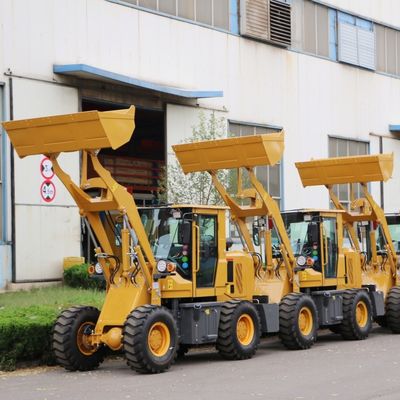

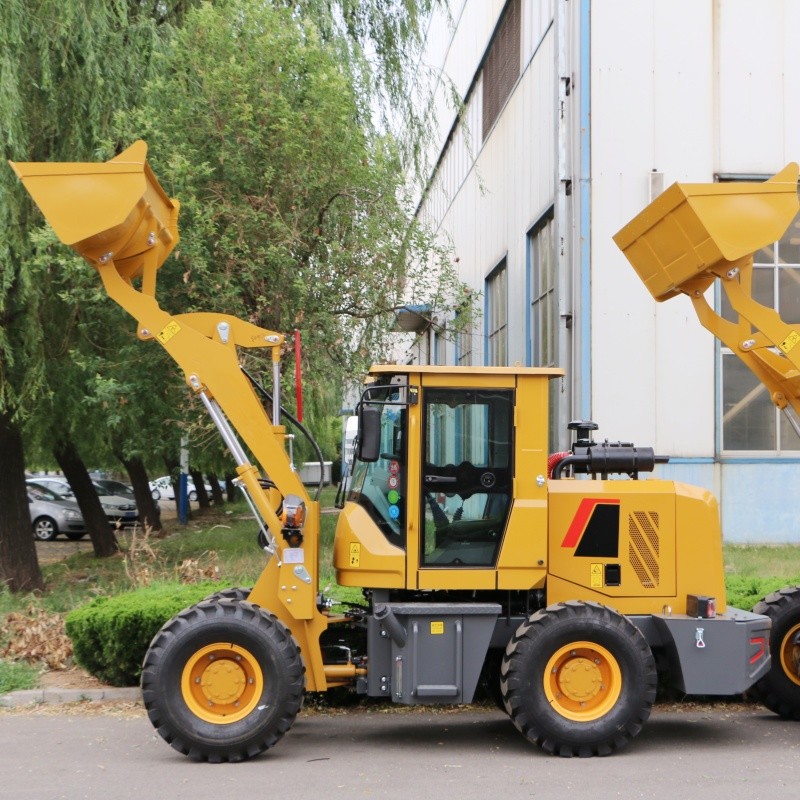

Flexible Operation Of Small Wheel Loader Front-End Loader 0Flexible Operation Of Small Wheel Loader Front-End Loader 1

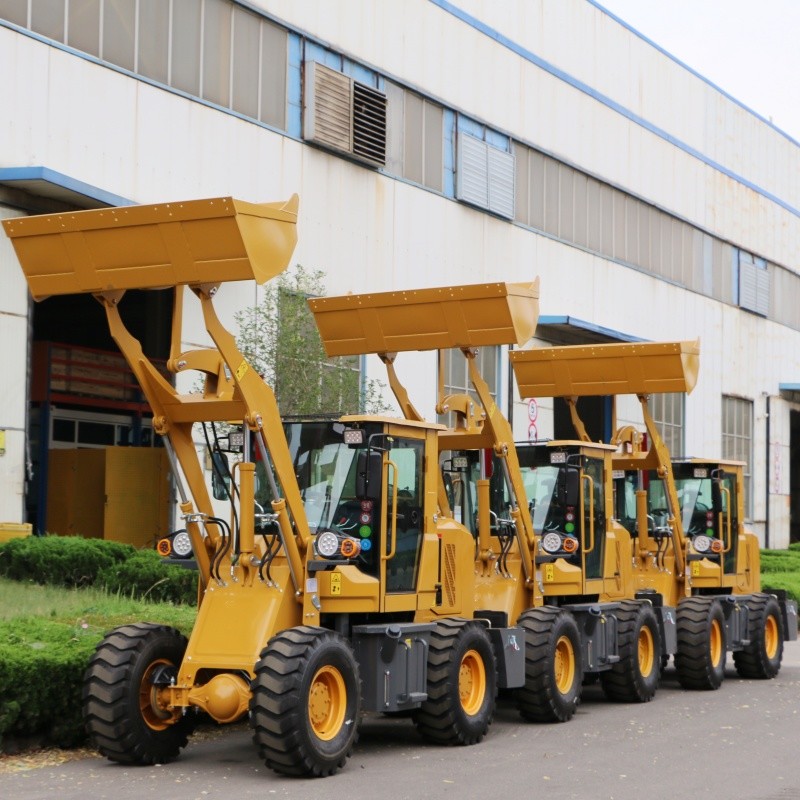

Flexible Operation Of Small Wheel Loader Front-End Loader 2



Packing and Shipping:

packaging
The loader will be carefully packaged to ensure safe delivery to our customers. The packaging will include:
Heavy duty cardboard box
Protective foam liner
Plastic packaging
an instruction manual
Shipping:
We provide global transportation services for loaders. Our shipping options include:
Standard transportation
express
air transport
ocean shipping
The transportation cost will vary depending on the selected destination and transportation method.

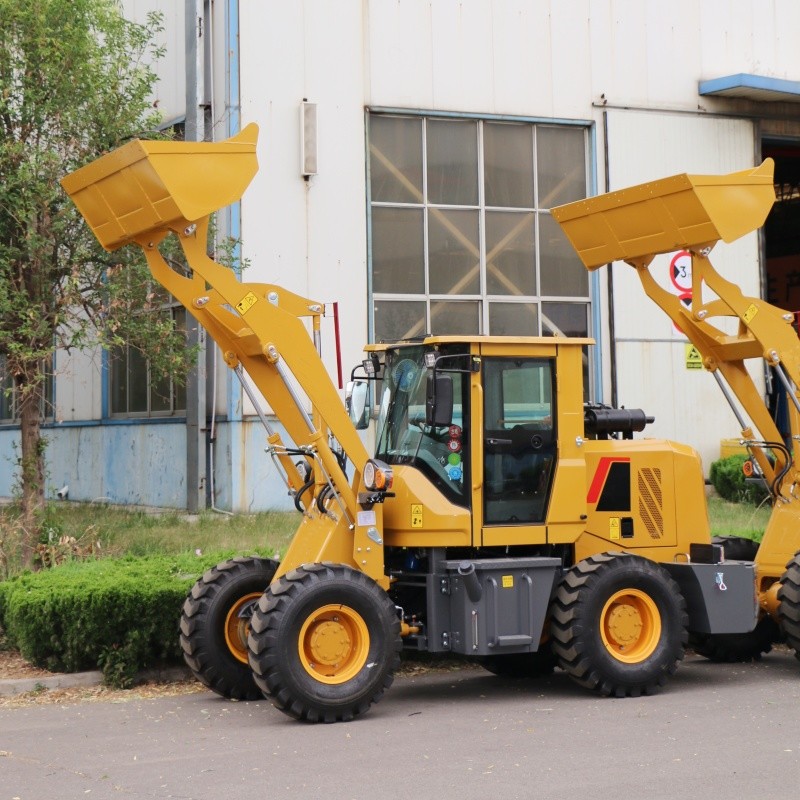

Flexible Operation Of Small Wheel Loader Front-End Loader 3

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is Jawell.
  • Q: What is the model number of this product?
    A: The model number of this pr    oduct is JW-RG-ZL-926
  • Q: Where is this product manufactured?
    A: This product is manufactured in Shandong, China.
  • Q: Does this product have CE certification?
    A: Yes, this product is certified with CE.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1 unit.
