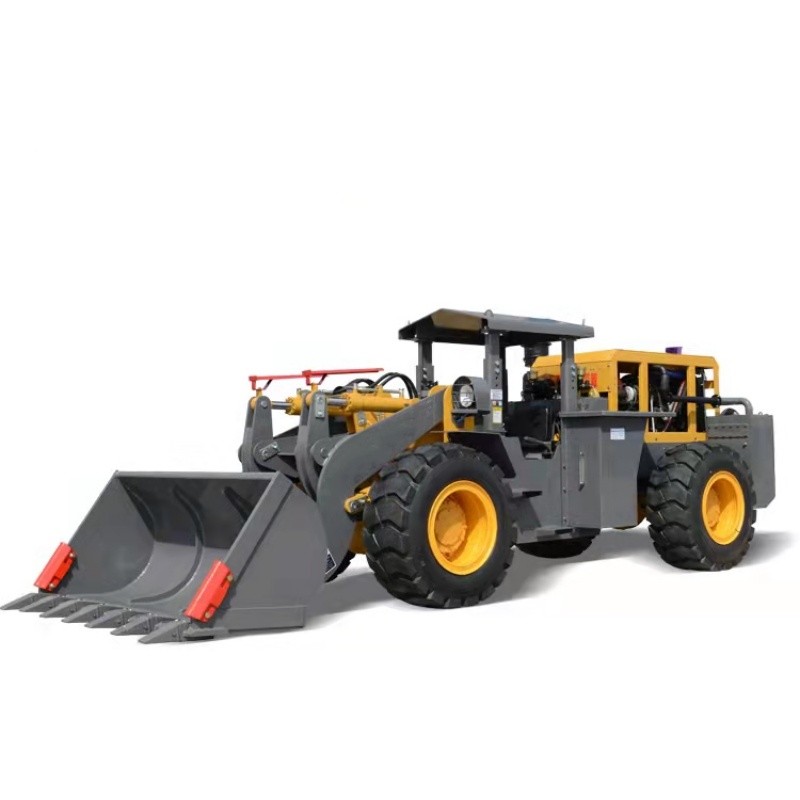

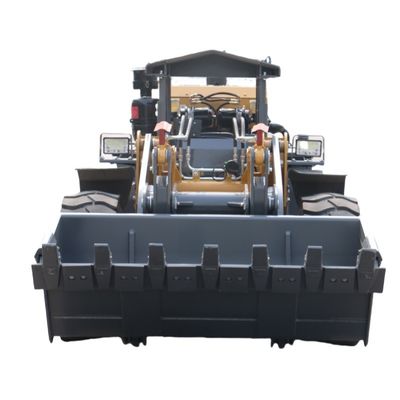

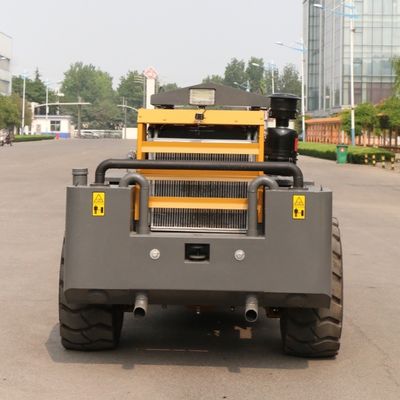

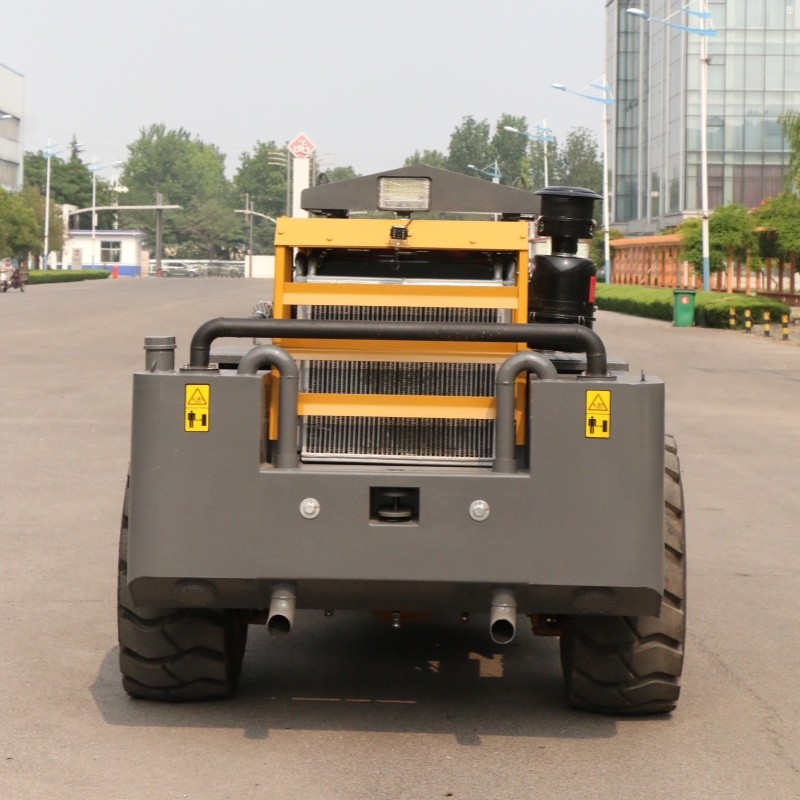

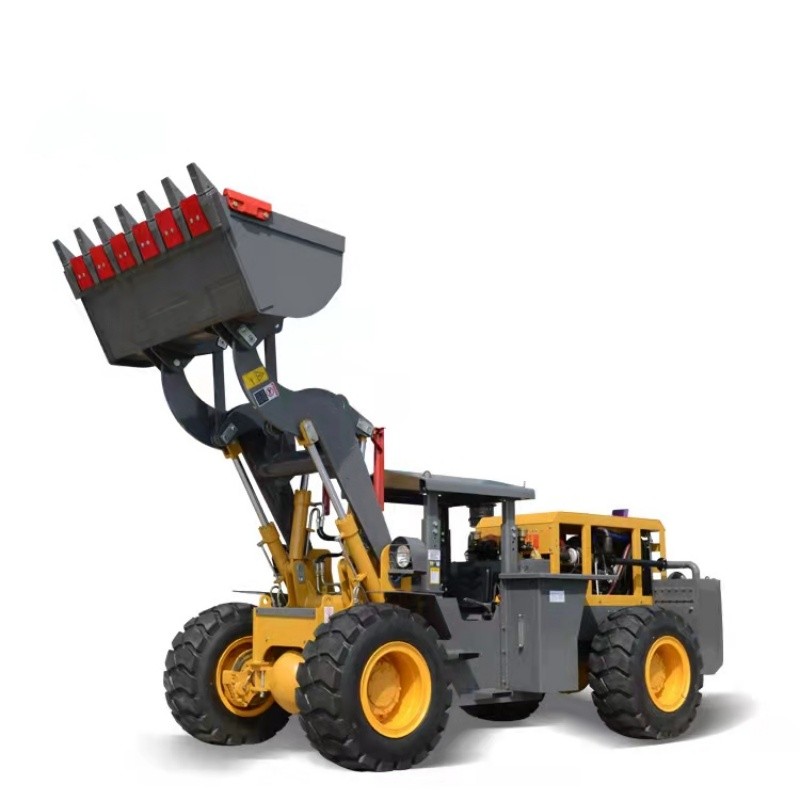

Mining Underground Loader Machine Gas Diesel Underground Wheel Loader

Place of Origin	China
Brand Name	Jawell
Certification	CE ISO GS EMC
Model Number	JW-RG-26
Minimum Order Quantity	1piece
Price	46256$-46856$
Packaging Details	Stadard
Delivery Time	25-35days
Payment Terms	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability	20pieces/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Engine	YUNNEI	Certification	CE ISO GS EMC
Maximum Unloading Height	1700MM	Discharge Distance	900MM
Discharge Angle	35°	Rated Load Mass	2000KG
Highlight	Underground Wheel Loader , Gas Diesel Underground Wheel Loader , Mining Underground Loader Machine

Leave a Message

Product Description

Product Description:

The loader machine is a wheeled loader designed according to international standards, equipped with a yunnei diesel engine to achieve high power and high torque backup; It is also equipped with a stable hydraulic system to achieve efficient utilization of engine power, low fuel consumption, and high reliability; This wheel loader has a short turning radius, high digging force, strong lifting ability, flexible operation, and high work efficiency.

Technical Parameters:

Machine parameter		Machine parameter
item	argument	item	argument
(MM)Minimum turning radius	5850	(MM)Body length	5540
(°)Theoretical climb Angle	35	(MM)Body width	1820
(KM)Maximum travel speed	30	(MM)Body height	1840
(KM)Minimum travel speed	8	(MM)Minimum ground clearance	220
(MM)Maximum unloading height	1700	(MM)Wheel track	1440
(S)No-load lifting time	≤3	(KG)Rated load mass	2000
(S)No-load descent time	≤2	(m³)Bucket capacity	1.0
(S)Unloaded time	≤1.5	(MM)The bucket is long, deep and high	1700450860
(S)Ternary sum	≤6.5
(MM)wheelbase	2450
(MM)Discharge distance	900
(°)Discharge Angle	35

Engine parameter		Transmission system parameter
item	argument	item	argument
manufacturer	YUNNEI	type	265High and low speed
Power (KW)	63	Change gear	First two and then two
Rated speed (r/min)	2400	Braking form	Air brake
Number of cylinders	4	axle	Weighted pinion bridge
Fuel supply system	High pressure common rail	Tyre type	23.5-70-16
(Nm/r/min)Maximum torque	280N.m/≤1680r/min	(Mpa)Front wheel pressure	0.33
(L)displacement	3.800	(Mpa)Rear wheel pressure	0.3
Cylinder diameter(mm)	102*115

Steering system		Refueling capacity
item	argument	item	argument
type	Full hydraulic steering	(L)Theoretical fuel solvent	80
(°)Steering Angle	40	(L)Theoretical volume of hydraulic oil	80
(MPa)System operating pressure	16	(L)Bridge strip	16
		(L)Engine oil	6.5
		(L)Transmission gear oil	24
		(L)Brake system	3

Applications:

Mining Underground Loader Machine Gas Diesel Underground Wheel Loader 0

Packing and Shipping:

packaging
The loader will be carefully packaged to ensure safe delivery to our customers. The packaging will include:
Heavy duty cardboard box
Protective foam liner
Plastic packaging
an instruction manual
Shipping:
We provide global transportation services for loaders. Our shipping options include:
Standard transportation
express
air transport
ocean shipping
The transportation cost will vary depending on the selected destination and transportation method.

FAQ:

Q: What is the brand name of this product?
A: The brand name of this product is Jawell.
Q: What is the model number of this product?
A: The model number of this product is JW-RG-26
Q: Where is this product manufactured?
A: This product is manufactured in Shandong, China.
Q: Does this product have CE certification?
A: Yes, this product is certified with CE.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 1 unit.
