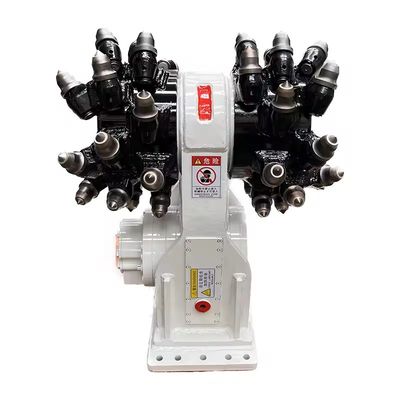

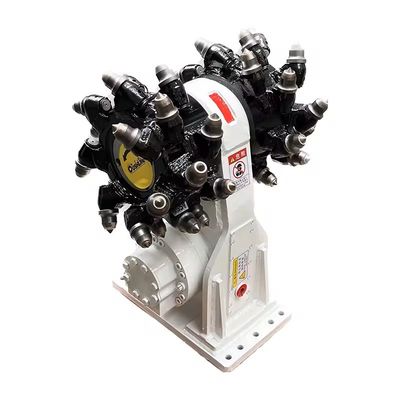

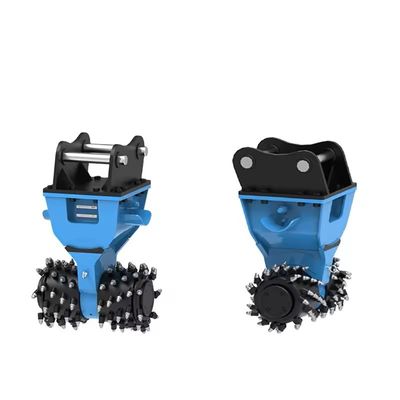

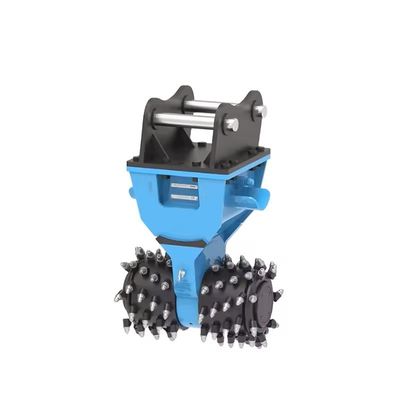

Drum Cutter Excavator Attachments Small Rotary Cutter Single Hydraulic Motor For Excavators 20 - 30 Ton
| Place of Origin | China |
|---|---|
| Brand Name | Jawell |
| Certification | ISO9001:2000 CE |
| Model Number | JWMD240 |
| Minimum Order Quantity | 1 piece |
| Price | 4779$-4978$ |
| Packaging Details | Wooden Crate |
| Delivery Time | 7-35days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 pieces/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suitable Excavator(Ton) | 20-30 Ton | Product Name | Drum Cutter |
|---|---|---|---|
| 0utput Torque (KN-m) | 5.2-23.4 | Rotating Speed (r/min) | 45-60 |
| Milling Wheel Diameter (m) | 380-570 | Weight (kg) | 372-1860 |
| Operation Pressure (bar) | 230 | ||
| Highlight | Small Rotary Cutter Excavator Attachments,Drum Cutter Excavator Attachments |
||
Product Description
Product Description
Drum Cutter Excavator Attachments Small Rotary Cutter Single Hydraulic Motor For Excavators 20 - 30 Ton
Adoptable high torque gear motor for higher productivity and motor lifetime.
Large variety of cutting heads for various applications available.
Robust housing design wear protection for higher uptime.
The quality and dimensions of the machine are all standard connecting frames for connecting with excavators.
Product Parameters
| MODEL | MD80 | MD150 | MD240 | MD350 |
| Excavator Tonnage (t) | 6-8 | 8-15 | 20-30 | 30-40 |
| Power (kw/ps) | 30/35 | 37/41 | 90/122 | 110/150 |
| Oil Flow (l/min) | 90 | 120 | 280 | 280 |
| No-load max flow (l/min) | 125 | 210 | 300 | 340 |
| Operation Pressure (bar) | 230 | 230 | 230 | 230 |
| 0utput torque (KN-m) | 5.2 | 11.7 | 19.7 | 23.4 |
| Rotating Speed (r/min) | 60 | 60 | 45 | 45 |
| Milling wheel diameter (m) | 380 | 430 | 570 | 570 |
| Cutter diameter (mm) | 20 | 20 | 30/38 | 30/38 |
| Weight (kg) | 372 | 920 | 1340 | 1860 |
Product Application
productive process
FAQ
1.What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 7-35 days depending on the products you order.
2.Can we buy one sample?
Yes, one sample order is welcome.
3.If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
4.How long is the warranty ?
12 Months long warranty after installation .
5.How to choose the appropriate model?
When inquiring about the product, you can provide some relevant construction information, such as pile diameter, thickness, geological analysis report, etc. Our technicians will develop relevant plans and select suitable models based on this information.
