Wire Pole OEM Powerful Machine Excavator Attachments Electric Pole Excavator Rotating Pole Setter Grapple
| Place of Origin | China |
|---|---|
| Brand Name | Jawell |
| Certification | ISO9001:2000 CE |
| Model Number | JWEAPG40YW |
| Minimum Order Quantity | 1 piece |
| Price | 2000$-2800$ |
| Packaging Details | Wooden Crate |
| Delivery Time | 7-35days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 1000 pieces/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Suitable Excavator(Ton) | 20-35 Ton | Max Opening | 525mm |
|---|---|---|---|
| Min Opening | 340mm | Min Grab Diameter | 200mm |
| Rotating Flow | 30-40L/min | Rotating Pressure | 12MPa |
| Working Pressure | 16-22MPa | ||
| Highlight | Rotating Pole Setter Excavator Attachments,Electric Pole Excavator Attachments,OEM Powerful Excavator Attachments |
||
Product Description
Product Description

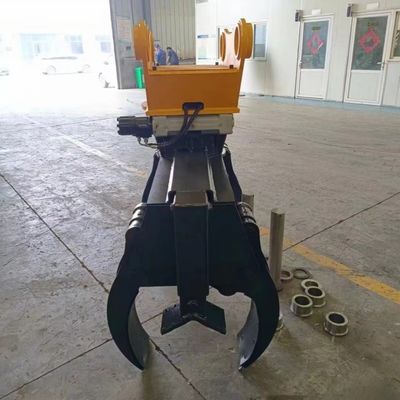

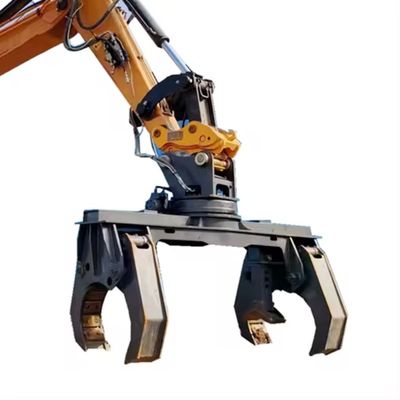

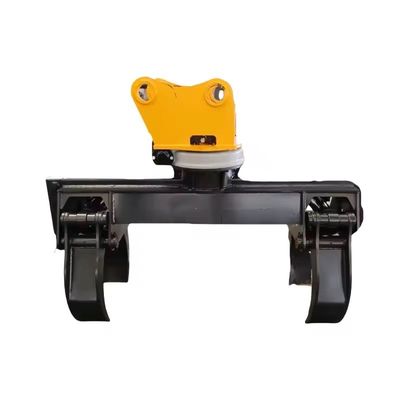

Wire Pole OEM Powerful Machine Excavator Attachments Electric Pole Excavator Rotating Pole Setter Grapple
The pole grapple pole grabber wire grapple is specially used for power construction pole erection conditions. It is a new product that solves the labor problem of pole erection. It has the characteristics of high stability, high efficiency and good safety protection.
The electric pole grapple has a rotation self-locking function and an oil cylinder clamping and holding function.
Features
1. 360 degree rotation function, cylinder clamping and holding function.
2. The rotary drive adopts worm gear mechanism and has self-locking function.
3. The pole clamp clamping knife is embedded with rubber friction plates, making the clamping safer, more reliable.
4. Equipped with an angle sensor to ensure the verticality of the pole, it is highly safe and prevents it
from tipping due to instability in the center of the pole.
5. Economical and efficient, it solves heavy labor requirements for power construction.
Product Parameters
| Unit | Unit | JW80MXD | JW150MXD |
| Max opening | mm | 525 | 525 |
| Min opening | mm | 340 | 340 |
| Grab width | mm | 1670 | 1870 |
| Max grab diameter | mm | 380 | 400 |
| Min grab diameter | mm | 200 | 200 |
| Rotating flow | L/min | 30-40 | 30-40 |
| Rotating pressure | MPa | 12 | 12 |
| working pressure | MPa | 16-22 | 16-22 |
| Working flow | L/min | 50-80 | 80-100 |
| weight | kg | 730 | 880 |
| Adaptive excavator | T | 8-10 | 12-18 |

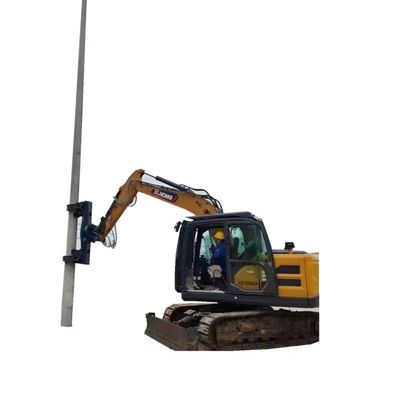

Product Application
mode of transport
FAQ
1.What's your delivery time?
After receiving your payment, we start to produce your order. It usually takes about 7-35 days depending on the products you order.
2.Can we buy one sample?
Yes, one sample order is welcome.
3.If I need different measurements or weight, could you offer OEM service?
Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
4.How long is the warranty ?
12 Months long warranty after installation .
5.How to choose the appropriate model?
When inquiring about the product, you can provide some relevant construction information, such as pile diameter, thickness, geological analysis report, etc. Our technicians will develop relevant plans and select suitable models based on this information.
