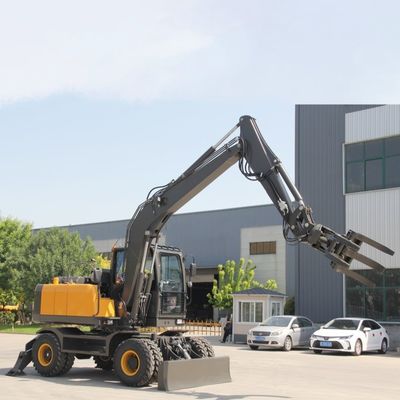

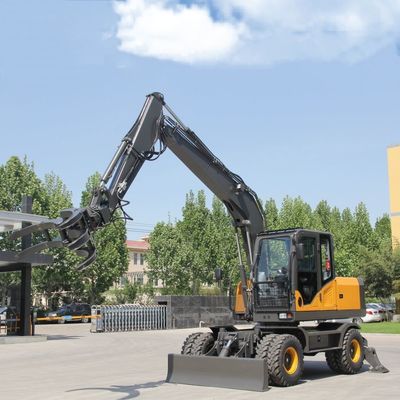

Hydraulic Rotating Claw Stone Wood Grapple Log Timber Grab For Wheel Excavator
| Certification | CE, ISO9001: 2000 |
|---|
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | JW9080 | Type | Wheel Excavator |
|---|---|---|---|
| Usage | GM Excavator | Bucket | Backhoe |
| Transmission | Hydraulic Transmission | Drive Type | Internal Combustion Drive |
| Bucket Capacity | 0.1~0.5m³ | Size | Medium-Sized |
| Condition | New | Overall Dimension (L*W*H) | 6522mm*2205mm*2850mm |
| Height Of Cabin | 2850mm | Wheel Base/Tread | 2400mm/1675mm |
| Minimum Ground Clearance | 235mm | Swing Radius At Tail | 1800mm |
| Bocm Length(mm) | 3650 | Arm Length(mm) | 2000 |
| Maximum Loading Distance(mm) | 7626 | Maximum Discharge Height(mm) | 4870 |
| Maximum Grab Radius(mm) | 7313 | Wood Grapple Maximum Opening Size(mm) | 1200 |
| Wood Grapple Minimumopeningsize(mm) | 150 | Transport Package | Nude Packing |
| Trademark | Jawell | Origin | China |
| Supply Ability | 200 Units/Month | Customization | Available |
| After-sales Service | 24h | Warranty | 1years |
| Shipping Cost | Contact The Supplier About Freight And Estimated Delivery Time. | Support Payments In USD | |
| Secure Payments | Every Payment You Make On Made-in-China.com Is Protected By The Platform. | Refund Policy | Claim A Refund If Your Order Doesn't Ship, Is Missing, Or Arrives With Product Issues. |
| Highlight | Wheel Excavator Stone Wood Grapple,Hydraulic Stone Wood Grapple,Log Timber Stone Wood Grapple |
||
Product Description
OEM Factory Price Wheel Excavator Claw Attachment Rotating Rock Stone Wood Grapple Hydraulic Log Timber Grab For Sale With CE
The forestry industry is one of the most diverse sectors you can find. Forestry takes place in different landscapes such as mountains or swamps, as well as different climates and different types of trees. This makes it so that one grapple can't fit for all. Depending on where you are and the type of trees, many different logging grapples are necessary. As we know, you can be in a remote location in the forest, but also on the road side or in the millyard and this will have an impact on your daily work. We know that these conditions make it important for you to have a reliable grapple that won't let you down when you need it the most.
| ENGINE | |
| Emission Standard | Tier 3/ Stage III |
| Make /Model | YC4DK85 |
| Power /Rotation speed | 62.5kw/ 2200rpm |
| DRIVING SYSTEM | |
| Maximum Travel speed | 32km/h |
| Tire model/Number of tires | 8.25-16/8 |
| Driving type | Mechanical walking |
| Steering type | Steering wheel |
| TRANSMISSION | |
| Type | N P D |
| BRAKE SYSTEM | |
| Driving brake(Front axle) | Air break |
| Parking brake | Air Brake |
| Emergency brake | Foot brake |
| PERFORMANCE PARAMETER | |
| Bocm Length(mm) | 3650 |
| Arm Length(mm) | 2000 |
| Maximum Loading Distance(mm) | 7626 |
| Maximum Discharge Height(mm) | 4870 |
| Maximum Grab Radius(mm) | 7313 |
| Wood Grapple Maximum Opening size(mm) | 1200 |
| Wood Grapple MinimumOpeningsize(mm) | 150 |
| Fuel tank | 120L |
| Hydraulic oil tank | 90L |
| Engine oil capacity | 11L |
| MACHINE SIZE | |
| Overall dimension (L*W*H) | 6522mm*2205mm*2850mm |
| Height of cabin | 2850mm |
| Wheel base/Tread | 2400mm/1675mm |
| Minimum Ground clearance | 235mm |
| Swing radius at tail | 1800mm |
Optional attachments
Exhibition
Q:How to guarantee the quality problem?
A:We have a professional quality inspection department, on-site inspection of the production process, layer upon layer of strict control and inspection of products before delivery, absolutely eliminate defective products.
Q:Why choose us?
A:In this industry, we have a better service and quality management system, I believe you will choose professional, and the same quality to provide you with a better price of us.
Q: How long is your delivery time?
A:In the case of stock, it is usually 2-5 days. Others calculate the time according to the quantity of your order.
Q:How do I receive the goods?
A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc.Pleaseprovide detailed address, we can also provide door-to-door service for you.
A:We have professional transport agents,which can deliver goods to various ports, FOB, CIF, DHL, Federal Express, etc.Pleaseprovide detailed address, we can also provide door-to-door service for you.
Q:How do I pay?
A: We accept 30% T/T in advance ,balance before shippment. If you have other needs, you can also contact us.
