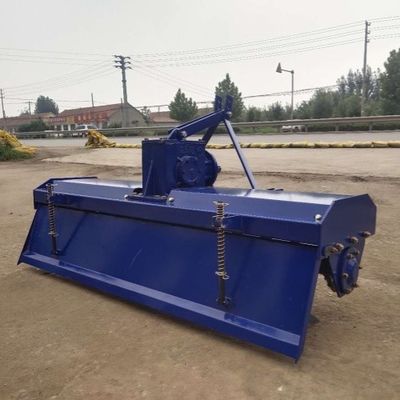

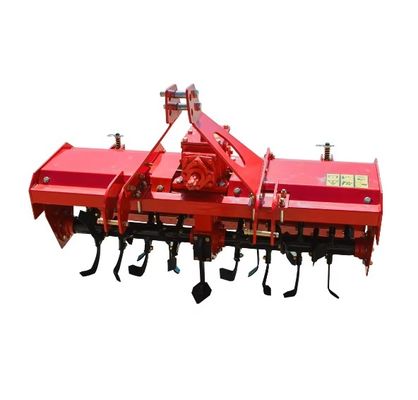

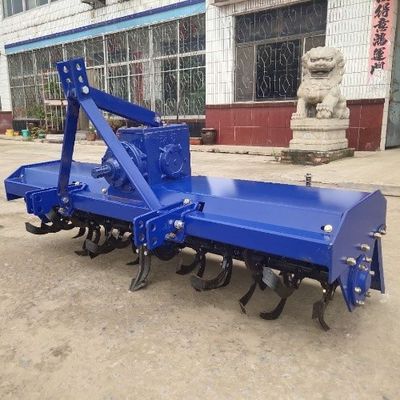

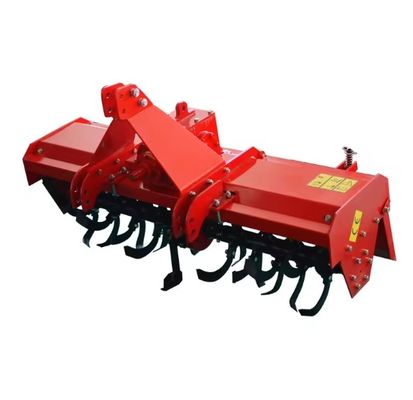

PTO Driven Agriculture Equipment 1GQN Farm Rotary Tiller Cultivator 1.5*0.9*0.9m
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-1GQN-SX |
| Minimum Order Quantity | 1 unit |
| Price | $450 per unit |
| Packaging Details | iron frame wood box packing |
| Delivery Time | 3-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Rotary Tiller | Condition | New |
|---|---|---|---|
| Warranty | 1 Year | Weight | 210 KG |
| Key Selling Points | High Productivity | Dimension(L*W*H) | 1.5*0.9*0.9m |
| Matched Power | 30-50(HP) | Working Width | 145mm |
| Working Depth | 12-20CM | Name | Farm Rotary Tiller Cultivator |
| Highlight | PTO Driven Rotary Tiller Cultivator,1GQN Farm Rotary Tiller,Farm Rotary Tiller Cultivator |
||
Product Description
CE Proved Agricultural Equipment PTO Driven 1GQN Farm Rotary Tiller Cultivator In Various Sizes
Product Description:
1GQN series Rotary Tiller is adopted middle gear transmission system, mounted with the tractor of 12-120HP. Tractor wheel tracks are completely covered after tillage as the working width is much wider. The quality is reliable and the performance is well. So it can be used on dry and paddy field. It can reduce the time, laboring, and cost, etc. during operation.
Technical Parameters:
| 1GQN-100 | 1GQN-115 | 1GQN-120 | 1GQN-125 | 1GQN-140 | 1GQN-150 | 1GQN-160 | 1GQN-180 | 1GQN-200 | 1GQN-220 | 1GQN-250 | 1GQN-300 | |||
| Model | ||||||||||||||
| 18-20 | 18-22 | 25 | 25 | 25-30 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-90 | 90`100 | |||
| Matched power | ||||||||||||||
| 95 | 110 | 115 | 10 | 135 | 145 | 155 | 175 | 195 | 215 | 245 | 295 | |||
| Working width | ||||||||||||||
| 18 | 18 | 22 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 58 | 70 | |||
| NO. of blades | ||||||||||||||
| IT225 | IT245 | |||||||||||||
| Type of blade | ||||||||||||||
| Total weight | 192 | 200 | 205 | 210 | 220 | 230 | 240 | 350 | 370 | 390 | 420 | 450 | ||
| L | 850 | 900 | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | ||
| O.D. | ||||||||||||||
| W | 1050 | 1310 | 1350 | 1450 | 1600 | 1740 | 1880 | 2056 | 2396 | 2636 | 2816 | 3316 | ||
| H | 950 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
| (cm) working depth | dry land | 8——14 | 12——20 | |||||||||||
| paddy field | 10——16 | 14——20 | ||||||||||||
| (r/min) | 530-730 | 540 | 540 | 540-720 | 540-720 | |||||||||
| Esporta axle rotary speed | ||||||||||||||
| (r/min) | 180-250 | 225 | 226 | 200 | 236 | 240 | ||||||||
| PTO axle rotary speed | ||||||||||||||
| (km/h) | 1——4 | 1——5 | ||||||||||||
| Walking speed | ||||||||||||||
| (%) | ≥85 | |||||||||||||
| Rate of working depth | ||||||||||||||
| (cm) | ≤5 | |||||||||||||
| Soil level after worked | ||||||||||||||
| (%) | ≥55 | |||||||||||||
| Vegetation covered rate | ||||||||||||||
| (%) | ≥50 | |||||||||||||
| The rate of crushed soil | ||||||||||||||
| Linkage | Standard three-point mounted | |||||||||||||
Applications:
Packing and Shipping:
Product Packaging and Shipping of Agricultural tools
Our Agricultural tools are carefully packaged and shipped to ensure the safe delivery of your order.
Packaging:
All of our tools are packaged in sturdy boxes with proper cushioning materials to prevent any damage during transit.
Smaller tools are individually wrapped and placed in a larger box, while larger tools are secured with bubble wrap and placed in a wooden crate for added protection.
