Jawell Agricultural Equipment Machinery 9YF-2200F Square Baler Grass Baler Machine
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-9YF-2200F-MW |
| Minimum Order Quantity | 1 |
| Price | negotiate |
| Packaging Details | iron frame wood box packing |
| Delivery Time | 5-To be negotiated |
| Payment Terms | L/C, T/T, MoneyGram |
| Supply Ability | 100 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 9YF-2200F | External Dimensions(mm) | 5900x2670x1900 |
|---|---|---|---|
| Knotter Type | RS6003 Type（D Type） | Number Of Knotters | 2 |
| Pickup Width (mm) | 2200 | Cross Section Size (width X Height) Mm | 485x365 |
| Matching Tractor Power(Kw) | ≥88.2 | Bale Length (mm) | 300-1200 |
| Traction Form | Traction Type | Bale Density | Adjustable Spring Loading |
| Pickup Structure Type | Double Axis Swing Knife Type | Tractor Power Output Speed (rpm) | 540 |
| Highlight | Jawell Agricultural Machinery Tools,Square Baler Grass Baler Machine |
||
Product Description

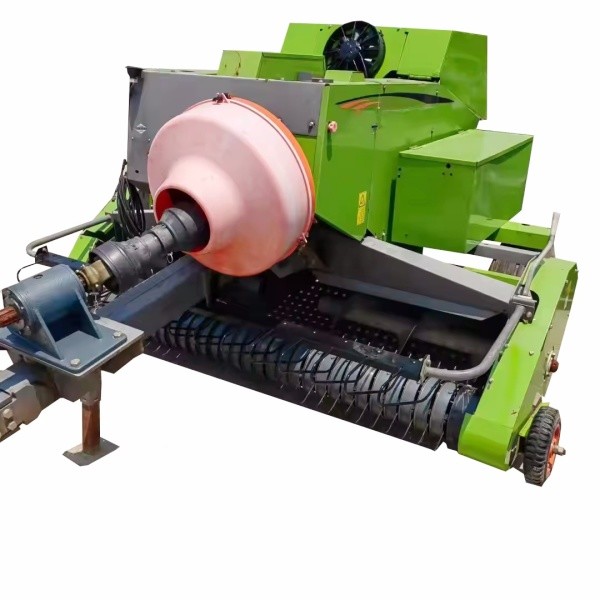

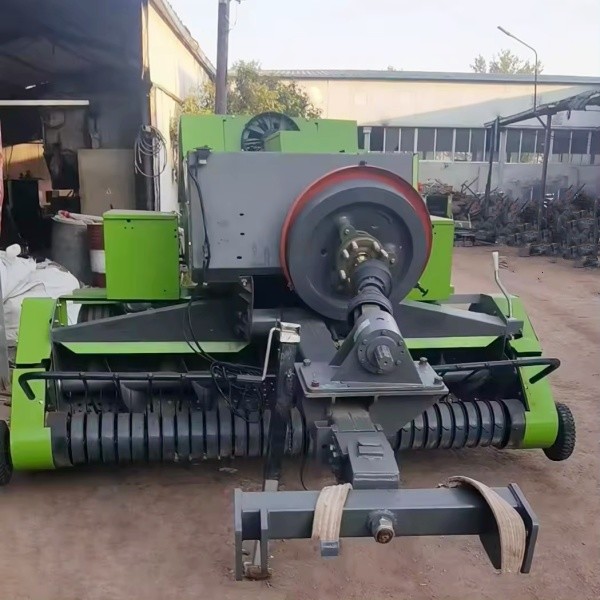

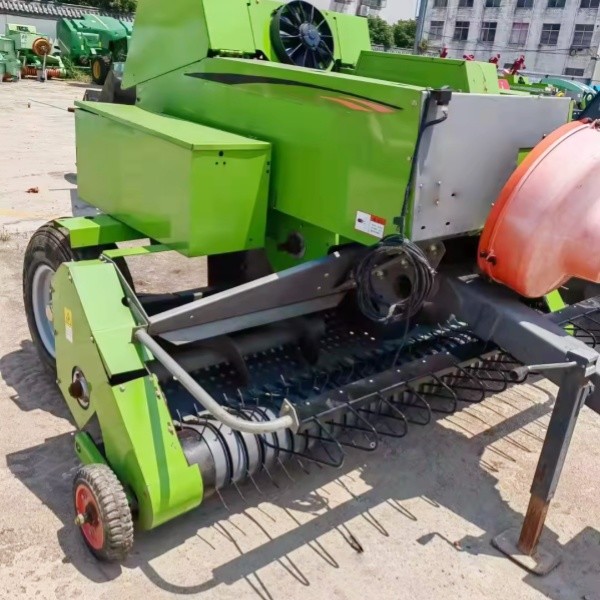

High Quality Agricultural Equipment 9YF-2200F Square Baler Grass Baler
Product Description:
9YF-2200F Square Baler Grass Baler,The machine can bind the cut straw and the crushed straw.When baling,automatically messenger ,automatically pick up straw, automatically strapping, automatically cutting the rope, and is possible through the slot size adjustment to change the rope and hay bale when bale density, Bale is not loose, not cluttered.
Technical Parameters:
| project | specifications |
| model | 9YF-2200F Square baler grass baler |
| External dimensions(mm) | 5900x2670x1900 |
| (length x width x height) | |
| Knotter type | RS6003 type(D type) |
| Number of Knotters | 2 |
| Pickup width (mm) | 2200 |
| Cross section size (width x height) mm | 485x365 |
| Matching tractor power(Kw) | ≥88.2 |
| Bale length (mm) | 300-1200 |
| Traction form | Traction type |
| Bale density | Adjustable spring loading |
| Pickup structure type | Double axis swing knife type |
| Tractor power output Speed (rpm) | 540 |
Packing and Shipping:
All of our tools are packaged in sturdy boxes with proper cushioning materials to prevent any damage during transit.
Smaller tools are individually wrapped and placed in a larger box, while larger tools are secured with bubble wrap and placed in a wooden crate for added protection.
