1 Year Warranty Agriculture Equipment 30HP-40HP Rotary Tiller Tractor
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-SGTN-SX |
| Minimum Order Quantity | 1 unit |
| Price | $650-700 per unit |
| Packaging Details | iron frame wood box packing |
| Delivery Time | 3-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 1000 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Machine Type | Rotary Tiller | Condition | New |
|---|---|---|---|
| Warranty | 1 Year | Weight | 240 KG |
| Dimension(L*W*H) | 1650*800*800 | Working Depth | 8-16cm |
| Working Width | 150cm | Matched Power | 30-40hp |
| Power Type | Tractor | ||
| Highlight | 40HP Rotary Tiller Tractor,Rotary Tiller Tractor Agriculture Equipment |
||
Product Description

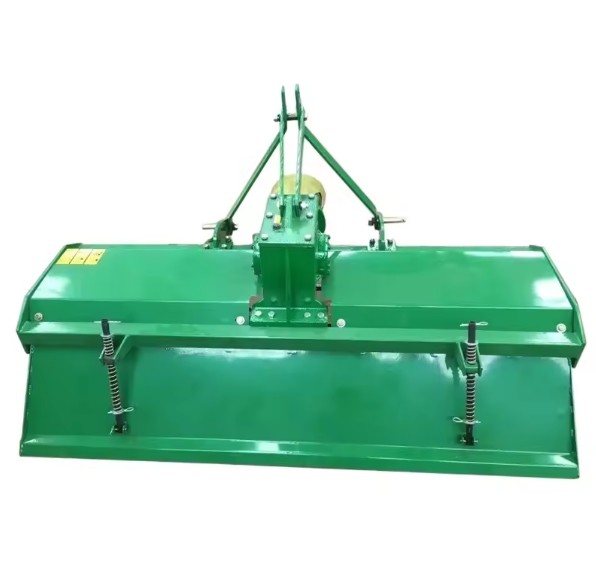

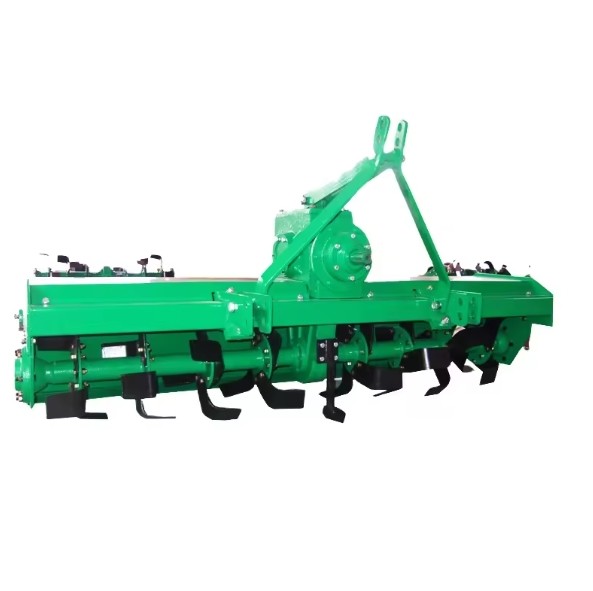

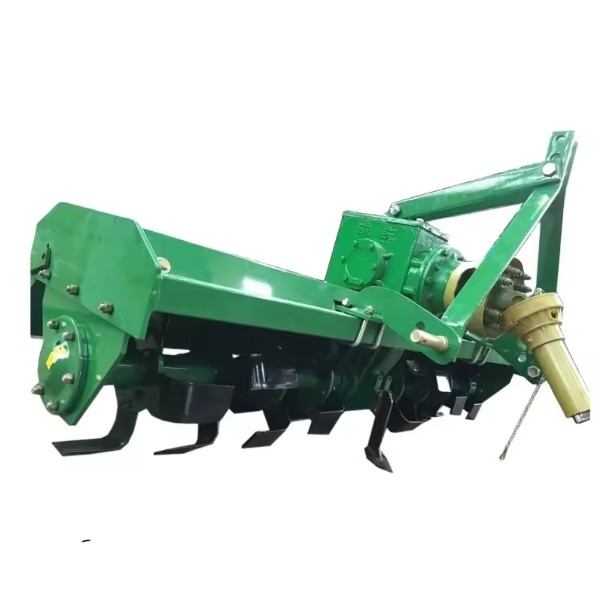

CE Proved Agricultural Equipment SGTN Rotary Tiller Tractor High Quality Agriculture Machinery
Product Description:
SGTN series stubble rotary tiller with middle gear transmission, it can be mounted with the tractor 15-160hp. With wide and strong blade, so it can smash straw and suit for hard soil. It is suited to dry land and paddy field.
Technical Parameters:
| SGTN-100 | SGTN-115 | SGTN-120 | SGTN-125 | SGTN-140 | SGTN-150 | SGTN-160 | SGTN-180 | SGTN-200 | SGTN-220 | SGTN-250 | SGTN-300 | |||
| Model | ||||||||||||||
| (hp) | 12—15 | 15-18 | 15-18 | 18-20 | 20-25 | 25-30 | 30-40 | 50-55 | 55-75 | 60-80 | 75-80 | 90 | ||
| Matched power | ||||||||||||||
| (cm) | 100 | 115 | 120 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | ||
| .Working width | ||||||||||||||
| 16 | 24 | 24 | 24 | 24 | 24 | 24 | 32 | 32 | 40 | 40 | 56 | |||
| NO. of blades | ||||||||||||||
| SGTN-L | ||||||||||||||
| Type of blade | ||||||||||||||
| (kg) | 210 | 215 | 230 | 230 | 240 | 250 | 260 | 400 | 420 | 450 | 470 | 495 | ||
| Total weight | ||||||||||||||
| Appearance | (L) | 850 | 900 | 900 | 900 | 900 | 900 | 900 | 1020 | 1020 | 1020 | 1020 | 1020 | |
| size(mm) | ||||||||||||||
| O.D. | ||||||||||||||
| (W) | 1040 | 1190 | 1240 | 1290 | 1440 | 1540 | 1640 | 1860 | 2060 | 2260 | 2560 | 3060 | ||
| (H) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1152 | 1152 | 1152 | 1152 | 1152 | ||
| (cm) working depth | dry land | 8——14 | ||||||||||||
| paddy field | 10——16 | |||||||||||||
| (r/min) | 530-730 | 540-720 | ||||||||||||
| PTO axle rotary speed | ||||||||||||||
| (r/min) | 180-250 | 200-240 | ||||||||||||
| Knife axle rotary speed | ||||||||||||||
| (km/h) | 1——4 | 2——5 | ||||||||||||
| Walking speed | ||||||||||||||
| (%) | ≥85 | |||||||||||||
| Rate of working depth | ||||||||||||||
| (cm) | ≤5 | |||||||||||||
| Soil level after worked | ||||||||||||||
| (%) | ≥55 | |||||||||||||
| Vegetation covered rate | ||||||||||||||
| (%) | ≥50 | |||||||||||||
| The rate of crushed soil | ||||||||||||||
| Linkage | Standard three-point mounted | |||||||||||||
Applications:
Packing and Shipping:
Product Packaging and Shipping of Agricultural tools
Our Agricultural tools are carefully packaged and shipped to ensure the safe delivery of your order.
Packaging:
All of our tools are packaged in sturdy boxes with proper cushioning materials to prevent any damage during transit.
Smaller tools are individually wrapped and placed in a larger box, while larger tools are secured with bubble wrap and placed in a wooden crate for added protection.
Packaging Details: Iron frame or with wooden box
Delivery Detail: 1~2 weeks after getting deposit.
