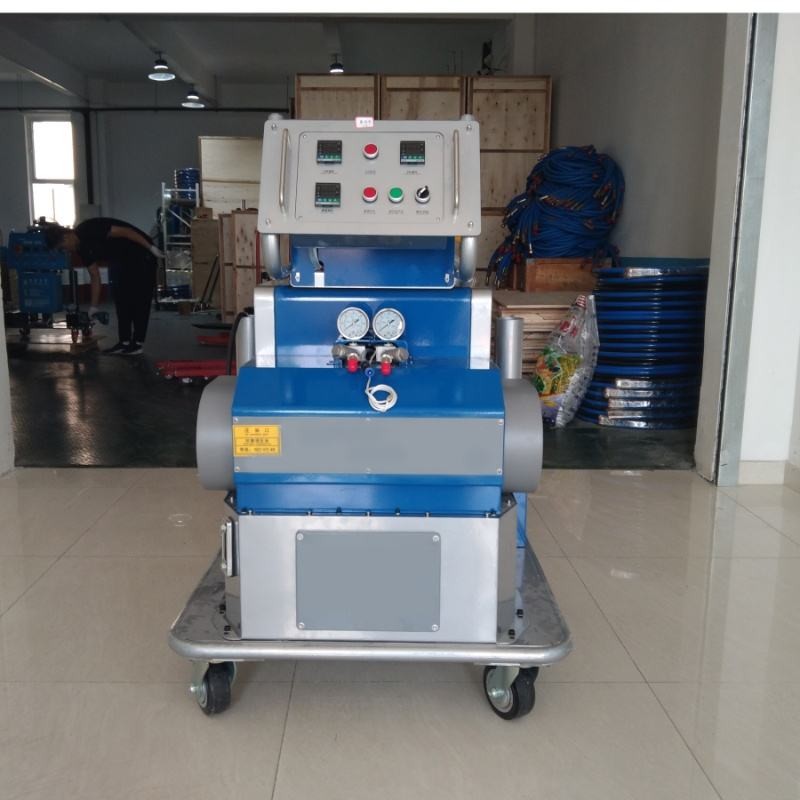

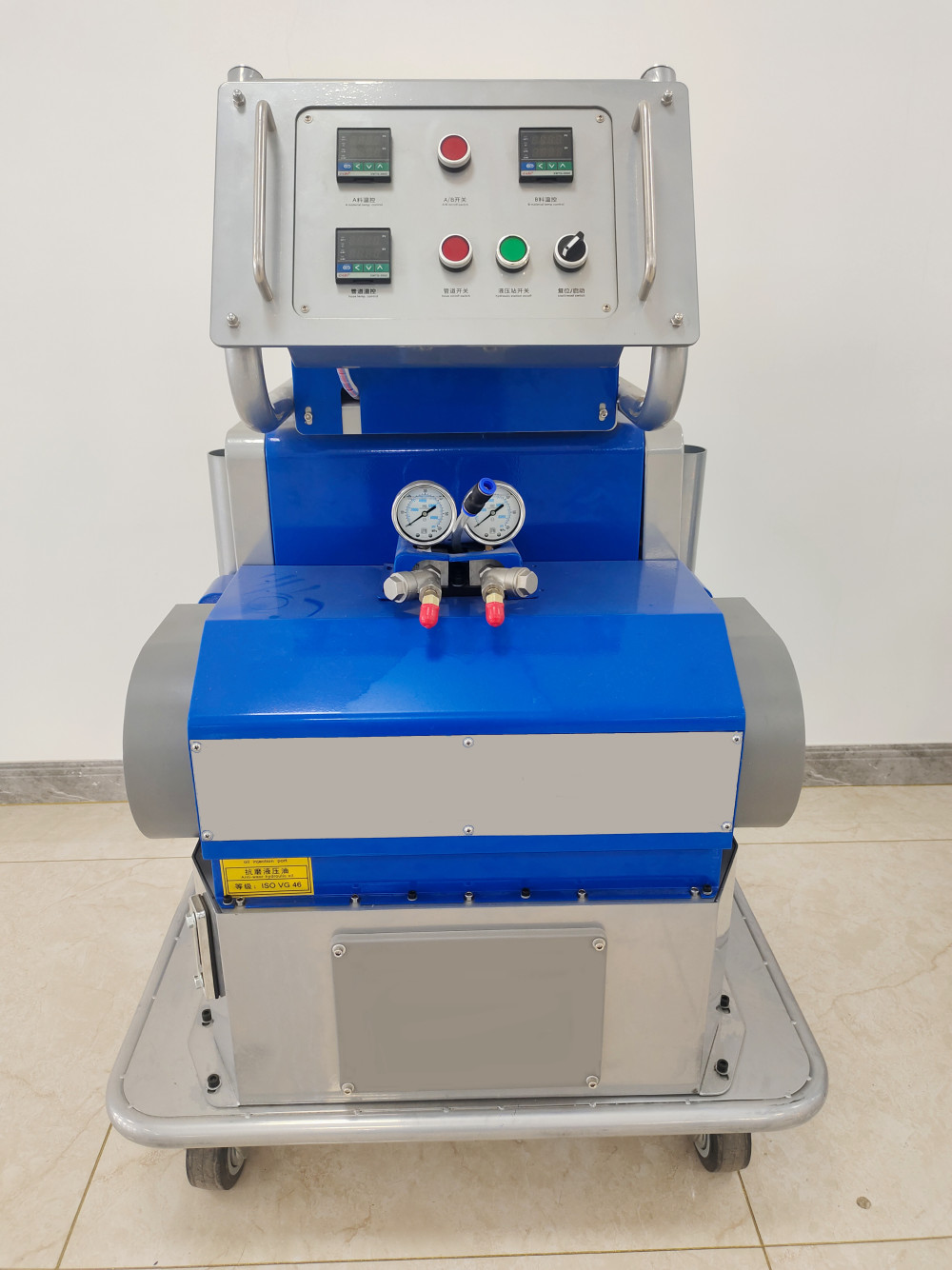

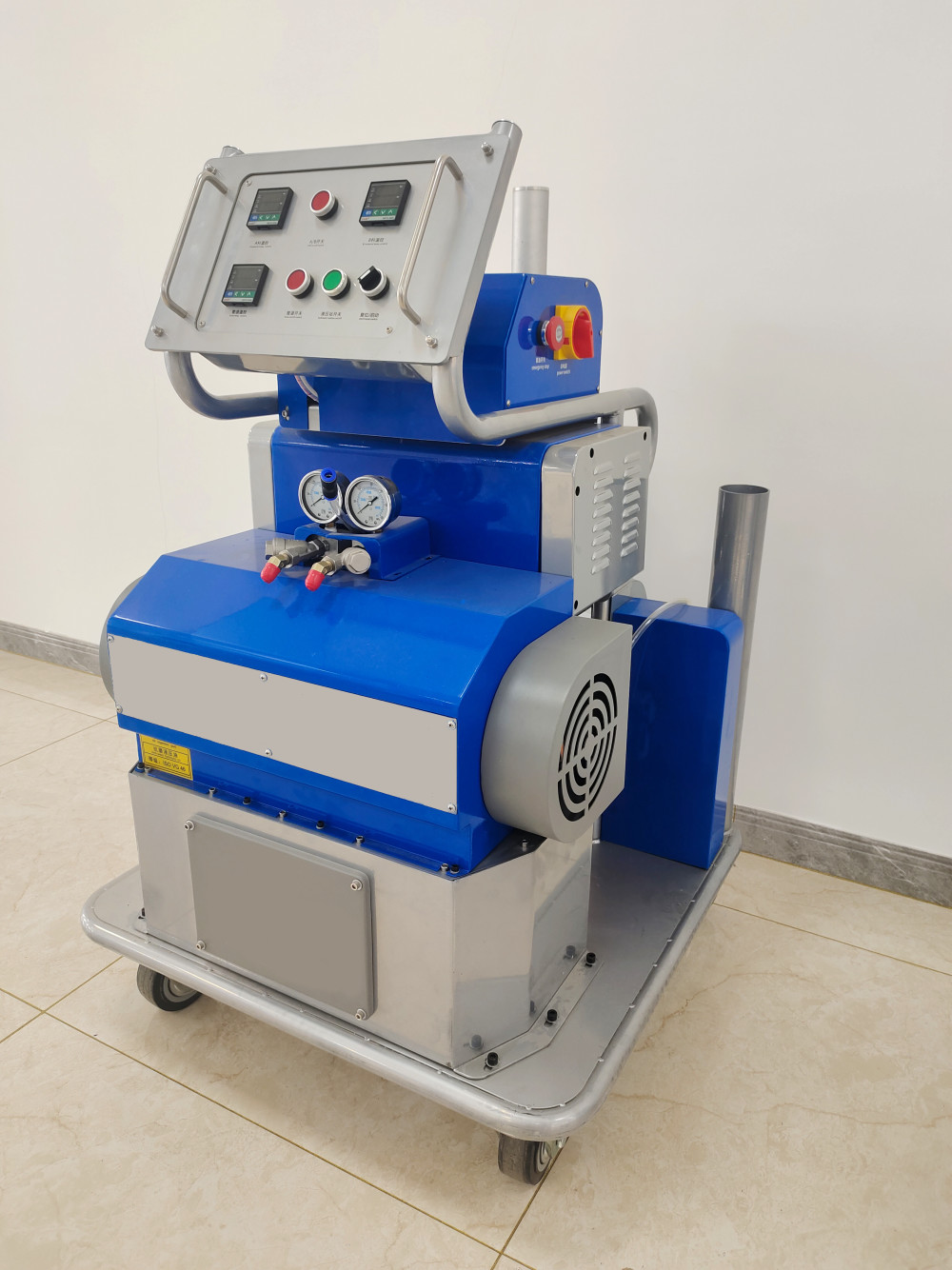

Polyurethane Spray Foam Insulation Machine Hydraulic Polyurea Spray Machine
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE,IAF,ISO |
| Model Number | JW-PFM-CNMC-V6-HT |
| Minimum Order Quantity | 1unit |
| Price | $3588--$4189 |
| Packaging Details | Export wooden packaging |
| Delivery Time | 7-35days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 300 KG | Name | Polyurethane Spray Foam Insulation Machine |
|---|---|---|---|
| Warranty | 15 Month | Key Selling Points | Long Service Life |
| Applicable Industries | Home Use, Retail, Construction Works | Machinery Test Report | Provided |
| Video Outgoing-inspection | Provided | Warranty Of Core Components | 1 Year |
| Core Components | Motor | Voltage | 380V 50HZ 3Phase(Customized) |
| Dimension(L*W*H) | 900*800*1650 | Hydraulic Pressure | 6-18Mpa |
| Heating Pipe | 15 Meters | ||
| Highlight | ISO Polyurethane Spray Foam Equipment,Polyurethane Spray Foam Insulation Machine,Hydraulic Polyurea Spray Machine |
||
Product Description
Spray Foam Polyurethane Spray Foam Machine Insulation Machine Hydraulic Polyurea Spraying Machine
Hydraulic Polyurea spraying system has a wide range of application. Hydraulic Polyurea Spraying Machine suitable for a variety of construction environment, can spray a variety of double-part materials: Polyurea elastomers, polyurethane foaming materials and polyurea waterproof, anti-corrosion materials are widely used in Subgrade waterproofing, Pipeline anticorrosion, auxiliary cofferdam Engineering, water tank anticorrosion, storage tanks, tank anticorrosion, pipe coating, cement layer protection, wastewater treatment, Roof waterproofing, Basement, industrial maintenance, wear-resistant lining, cold storage, exterior walls and other insulation, insulation, anti-corrosion, waterproof, wear-resistant areas.
Advantage
1.Hydraulic drive, strong power, more stable pressure, unaffected by seasons, low noise, and high efficiency;
2.Equipped with air cooling system to reduced oil temperature, hence offering protection for the motor and pump and save oil;
3.Single side 6-cylinder heating, faster, more uniform heating, and higher efficiency; 380V heating system enables rapid warming of raw materials to the best state, making sure it performs well in cold condition;
4. Equipped with emergency switch system, help operator deal with emergencies rapidly;
5. Quadruple raw material filtrationdevice can minimize the problemof spray blockage；
6. Multi-leakage protection system to protect the safety of the operator;
7. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;
8.Feeding pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.
9.Humanized design with equipment operation panel, super easy to get the hang of it;
10.One machine with multiple functions, can be used for dual component: polyurea spraying, hard foam polyurethane spraying, all water polyurethane spraying, polyurethane pouring, etc. (spray gun replacement required);
Specification
|
power
|
customized
|
|
Total power
|
26KW
|
|
Heating power
|
22KW
|
|
Driven mode
|
hydraulic
|
|
Hydraulic pressure
|
6-18Mpa
|
|
Air pressure
|
0.5~0.8 MPa ≥0.5m³/minute
|
|
Material output
|
3~12kg/minute
|
|
Maximum pressure on one side
|
36Mpa
|
|
AB material ratio
|
1:1
|
