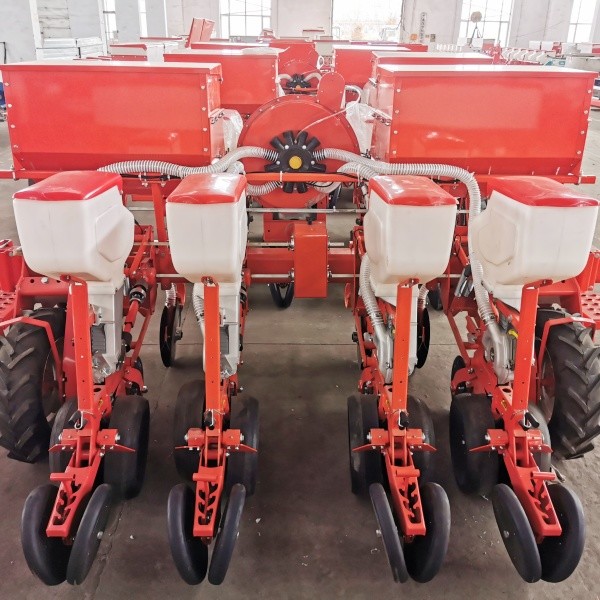

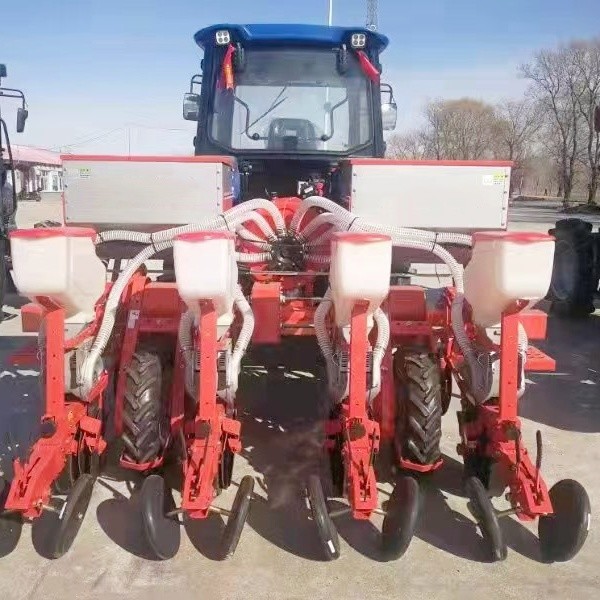

Air System Precision Seeder Agriculture Equipment 4 Rows Sowing Depth 3-8 Cm
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-HK-2BQMG-4A |
| Minimum Order Quantity | 1 unit |
| Price | $11531.5-11731.5 per unit |
| Packaging Details | Carton, wooden box, iron frame |
| Delivery Time | 15-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 500 Set/Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 2BQMG-4A | Rows | 4 |
|---|---|---|---|
| External Dimensions (length X Width X Height) Mm | 3200×3000×1560 | Line Spacing Range Cm | 50-68 |
| The Spacing Between The Seeding Strips Of The Seeder Cm | 12.5 | Sowing Depth Cm | 3—8 |
| Seed Box Capacity L | 36×4 | Rated Power Input Speed R/min | 540 |
| Supporting Power Kw | 33.1～64.3 | Self Weight Kg | 960 |
| Fat Box Volume L | 2×180 | Working Speed Km/h | 8—10 |
| Highlight | 4 Rows Agriculture Equipment,Sowing Depth Agriculture Equipment,Air System Agriculture Equipment |
||
Product Description
Product Description:
Planting is the most delicate agronomic operation:
Air system precision seeder,its execution significantly affects the germination and subsequent growth of the plant. The goal is to create a deposition furrow for the seed at a constant depth which must subsequently be closed with ease and precision to ensure that the single seed has the greatest contact surface with the ground.
Features:
Air system precision seeder,The new climatic scenarios are considerably reducing the time windows for field operations, therefore it is essential to increase the working speed without compromising the plantig quality, both in relation to the depth and the homogeneity of distribution along the rows.
Technical Parameters:
| model | 2BQMG-4A |
| Rows | 4 |
| External dimensions (length x width x height) mm | 3200×3000×1560 |
| Line spacing range cm | 50-68 |
| The spacing between the seeding strips of the seeder cm | 12.5 |
| Sowing depth cm | 3—8 |
| Seed box capacity L | 36×4 |
| Rated power input speed r/min | 540 |
| Supporting power kw | 33.1～64.3 |
| Self weight kg | 960 |
| Fat box volume L | 2×180 |
| Working speed km/h | 8—10 |
Applications:
Support and Services:
Get free replacement parts service and online technical support for 1 year after purchase. Additional shipping fees may apply.
Packing and Shipping:
Seeding machine size (centimeters), 3200 x 3000 x 1560
The seeder is packaged in a sturdy wooden box to ensure safe delivery to the doorstep. Packaging aims to protect the machine from any damage during transportation; In the wooden box, you will find that the seeder is tightly wrapped in bubble wrap to prevent any scratches or dents; The packaging also includes necessary components and user manuals.
For international orders, shipping fees may be charged and delivery times may vary depending on the destination.
Once your order is shipped, you will receive a confirmation email with a tracking number, so you can easily track your package and accurately know when it will arrive.
Thank you for choosing our seeder.
FAQ:
1,How many rows can be sown simultaneously at most?
4-13 rows
2,What is the spacing between sowing rows?
50-68 cm
3,What is the sowing depth?
3-8
4,What is the volume of the seed box?
36L
5,What is the rated power input speed?
540 r/min
6, What is the homework speed?
8-10 km/h
