Commercial Autonomous Orchard Sprayers Traction Air Supply Orchard Mist Sprayer 1100L
| Place of Origin | China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-OS-JY3WF-1100-WL |
| Minimum Order Quantity | 1 |
| Price | $2578.3 |
| Packaging Details | 3000*1450*1400 |
| Delivery Time | 7-15 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 3000 per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | JY3WF-1100 | External Dimensions (mm) | 2260*1290*1380 |
|---|---|---|---|
| Tractor Power Required For Matching | >30 Horsepower | Spray Height | >8M |
| Spray Width | >16M | Spray Pump | Diaphragm Pump |
| Liquid Pump Flow Rate | 80L/min | Fan Diameter | 800mm |
| Input Speed | ≤ 540 Rpm | Spray Control Mode | Segmented Control/independently Switchable |
| Number Of Nozzles | 12 Pieces | ||
| Highlight | Commercial Orchard Sprayer,Orchard Mist Sprayer 1100L,Autonomous Orchard Sprayer |
||
Product Description

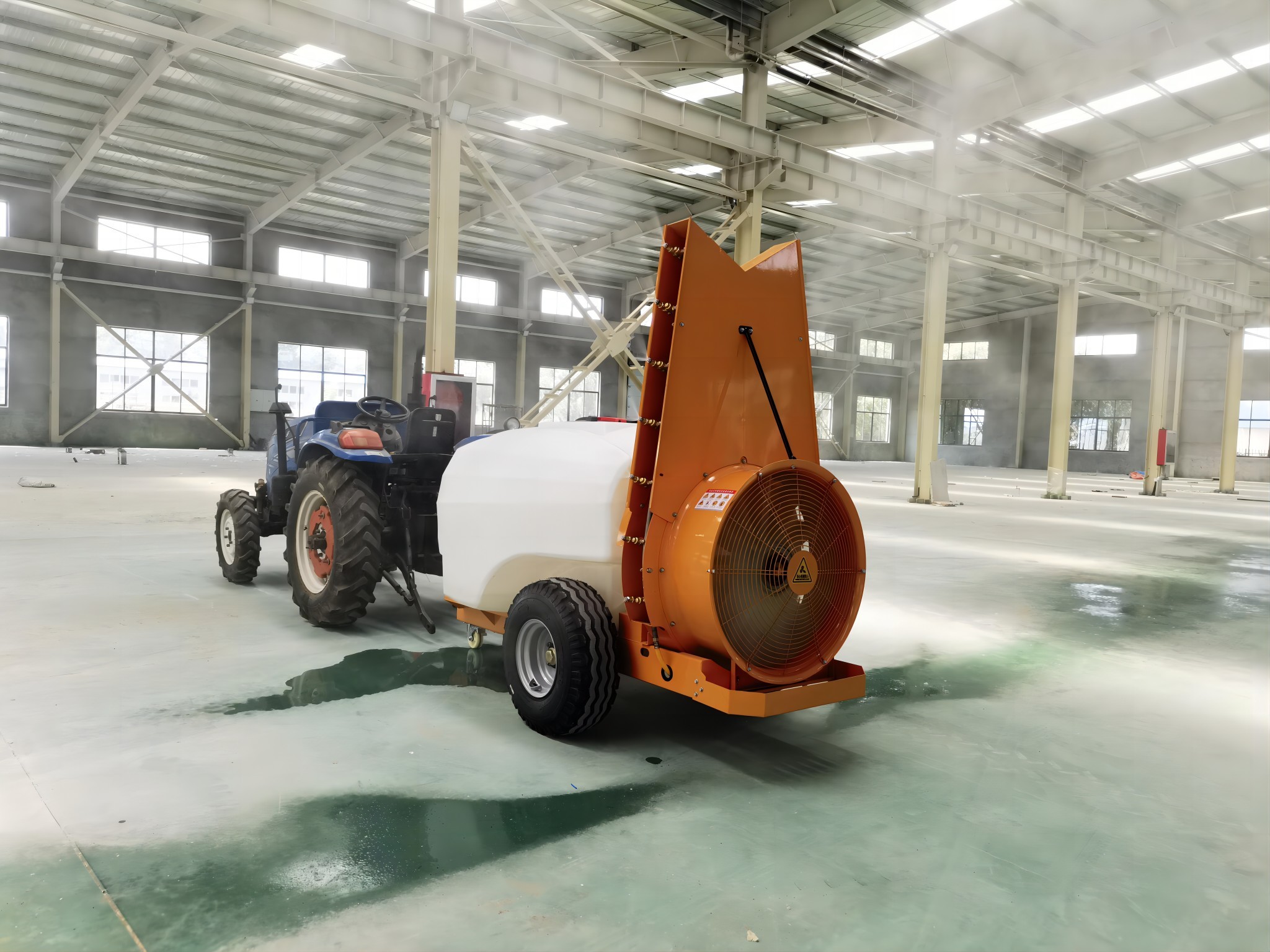

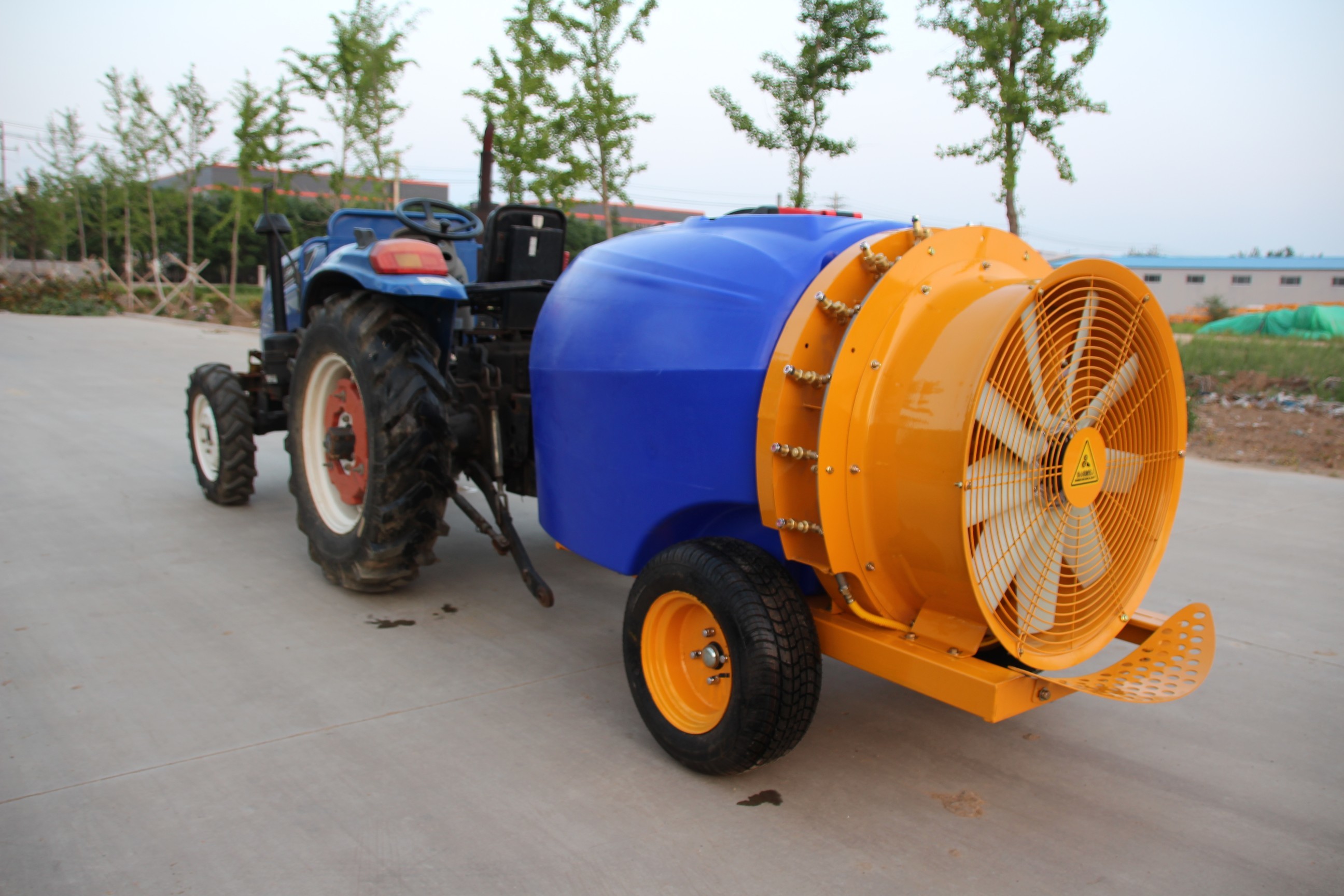

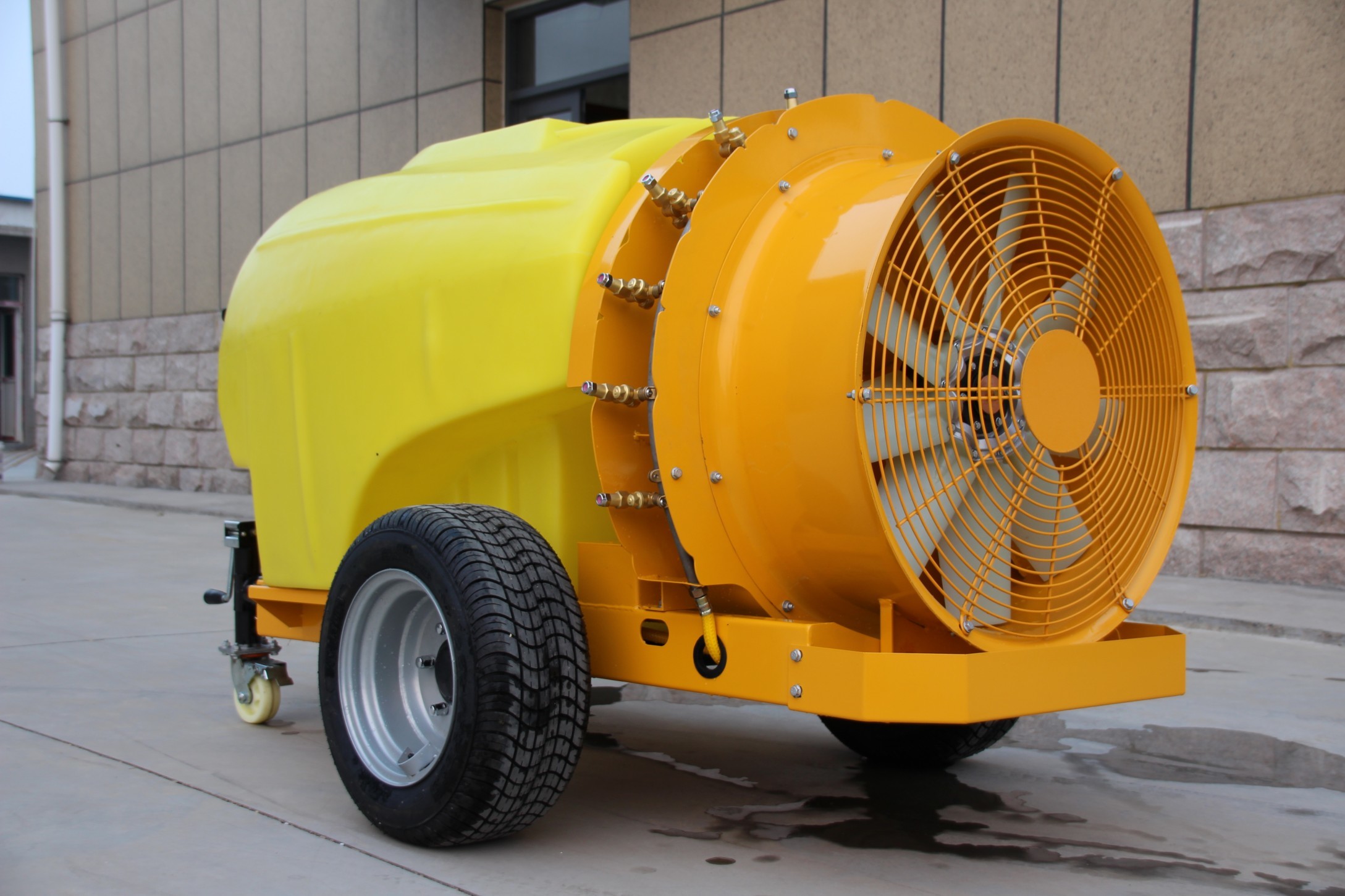

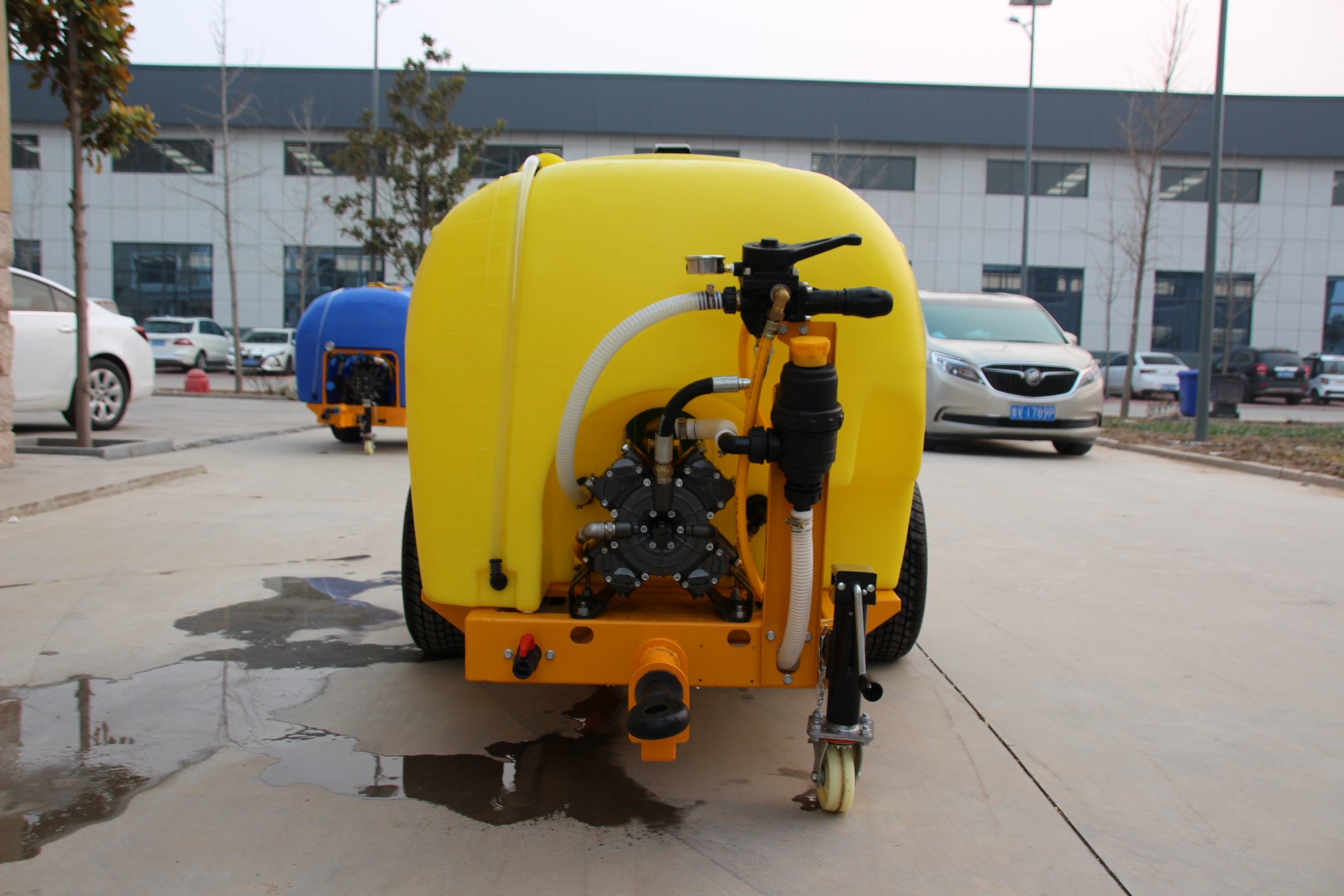

Traction Air Supply Orchard Mist Sprayer 1100L Autonomous Orchard Sprayers Commercial Orchard Sprayer
Traction orchard sprayer
This machine is suitable for efficient pesticide spraying in orchards; Such as apples, date trees, bananas, citrus, pear trees, etc.
This machine is designed to work in a fan-shaped manner, and under the push of high-pressure airflow, it forms a continuous atomization work belt with a 270 ° fan-shaped expansion, ensuring that there are no dead corners after spraying in the orchard. The spraying area can reach more than 20 acres per hour. It adopts a wide leaf fan, stable wind pressure, large air volume, good penetration, and does not damage the fruit. The spray device is matched with a high-quality plunger pump, with uniform pressure, and the main components can work for 1000 hours without failure. Standard dual stage filtration, water filtration, and washable pipeline filter.
The nozzle angle can be adjusted, controlled in segments, and each segment can be opened or closed at will, with single side or fixed-point spraying.
