Pneumatic Electrostatic Orchard Sprayer Tractor For Agricultural / Forestry Pest Control
| Place of Origin | China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-OS-JY400-WL |
| Minimum Order Quantity | 1 |
| Price | $2578~$6111 |
| Packaging Details | 1560*1100*1650 |
| Delivery Time | 7-14days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 2500 per mouth |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | JY400 | Supporting Facilities Power | 30-50HP |
|---|---|---|---|
| Fan And Pump Transmission Mode Transmission Mode | PTO | Fan Type | Axial Flow Fan |
| Fan Diameter | 500mm | Range | 20-30M |
| Liquid Pump Type | Three Cylinder Plunger Pump | Liquid Pump Flow | 25-50L/min |
| Pitch Angle | -10-50° | Medicine Box Volume | 400L |
| Size (mm) | 1560*1100*1650 | ||
| Highlight | Electrostatic Orchard Sprayer,Orchard Sprayer Tractor,Pneumatic Orchard Spraying Equipment |
||
You can tick the products you need and communicate with us in the message board.
| Model | JY400 | JY800 | JY1000B | |
|---|---|---|---|---|
| Supporting facilities power | 30-50HP | 60-95HP | 95-150HP | |
| Fan diameter | 500mm | 650mm | 800mm | |
| range | 20-30M | 40-45M | 50-60M | |
| Liquid pump flow | 25-50L/min | 35-70L/min | 50-80L/min | |
| pitch angle | -10-50° | -10-50° | -10-50° | |
| Medicine box volume | 400L | 800L | 1200L | |
| Size (mm) | 1560*1100*1650 | 1950*1450*1950 | 2400*1700*2050 |
Product Description
Orchard Sparayer Tractor Pneumatic Orchard Spray Remote Spray Electrostatic Autonomous Orchard Sprayer

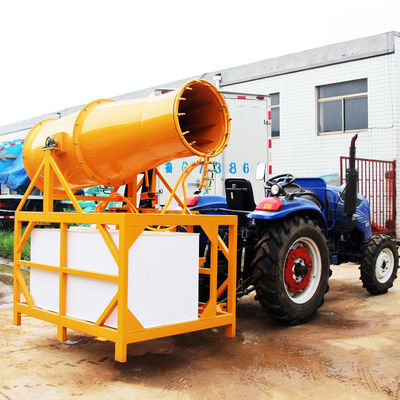

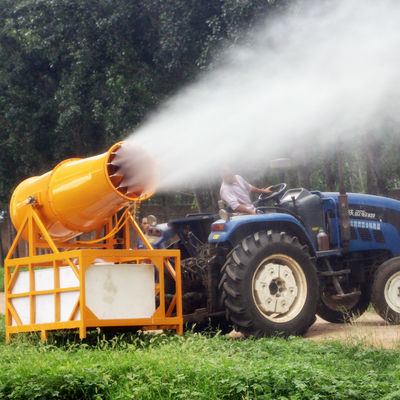

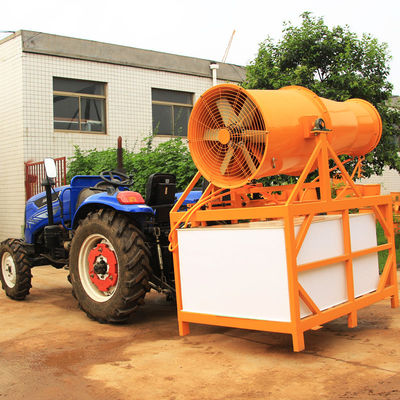

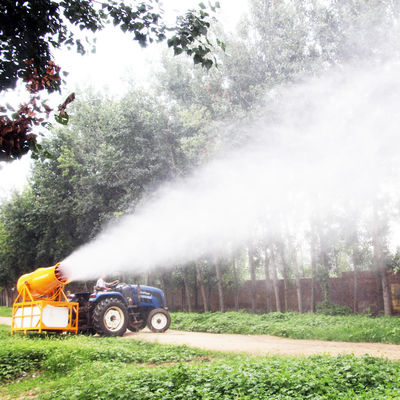

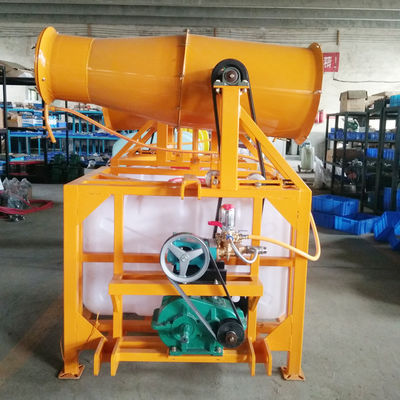

The tractor equipped hanging type air supply high-efficiency remote spray is a plant protection machine that works with the rear three-point coupling of the tractor. It uses simple mechanical transmission and power transmission through the rear power output shaft of the tractor. Three models can be equipped with 30-120 horsepower tractors, with large air volume and long range (20-60 meters), and good penetration.
The high efficient and remote spray can be widely used in agricultural and forestry pest control; Prevention and control of diseases and pests of tall trees such as Three-North Shelterbelt Program, farmland net shelter forest, fast-growing timber poplar forest, economic forest, green belt on both sides of expressway and urban street trees; Sterilization and pest control, hygiene and epidemic prevention of outdoor large areas such as urban greening, garbage dumps, sports fields, and breeding farms.
