Suspension Small Orchard Sprayer Air Mist Blower Tractor Pesticide Spraying Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-OS-3WF-300-WL |
| Minimum Order Quantity | 1 |
| Price | $1107~$1490 |
| Packaging Details | 2140*1300*1300 |
| Delivery Time | 15-20 days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 2000 pieces per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 3WF-300 | External Dimensions (mm) | 1230*1000*1050mm |
|---|---|---|---|
| Medicine Box Capacity | 300L | Tractor Power Required For Matching | >18 Horsepower |
| Spray Height | >6M | Spray Width | >7M |
| Flow | 15-32L | Liquid Pump Flow Rate | 600mm |
| Fan Diameter | ≤ 540 Rpm | Spray Control Mode | Segmented Control/independently Switchable |
| Number Of Nozzles | 10-12 Pieces | ||
| Highlight | Small Orchard Sprayer,Suspension Orchard Sprayer,CE Pesticide Spraying Equipment |
||
You can tick the products you need and communicate with us in the message board.
| model | 3WF-300 | 3WF-360 | 3WF-500 | |
|---|---|---|---|---|
| External dimensions (mm) | 1230*1000*1050mm | 1200*1200*1100mm | 1250*1280*1300mm | |
| Medicine box capacity | 300L | 360L | 500L | |
| Tractor power required for matching | >18 horsepower | >30 horsepower | >40 horsepower | |
| Spray width | >7M | >9M | >9M | |
| Liquid pump flow rate | 600mm | 800mm | 800mm | |
| Number of nozzles | 10-12 pieces | 10-12 pieces | 10-14 pieces |
Product Description

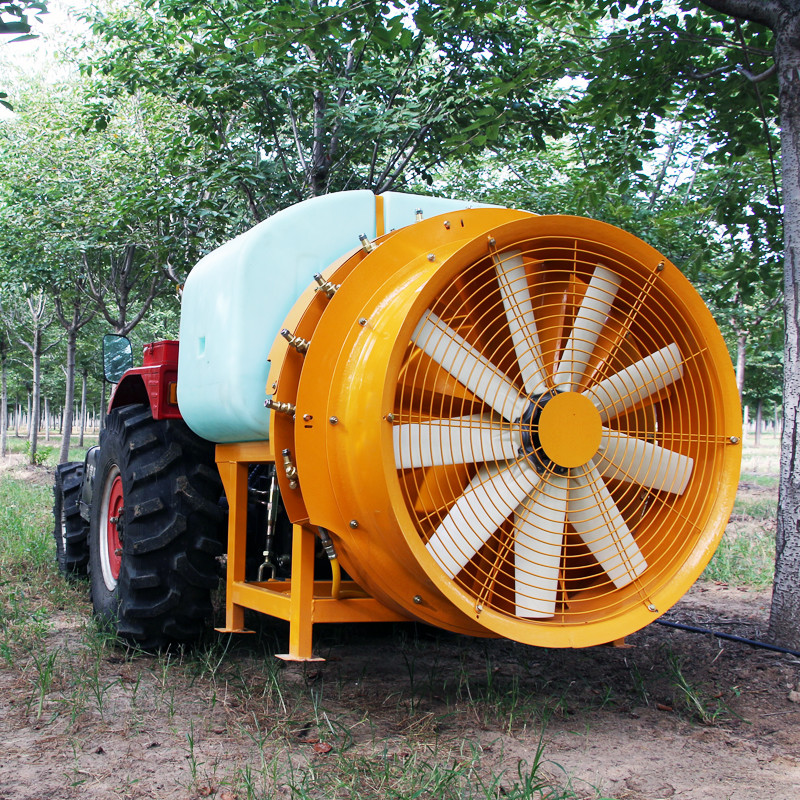

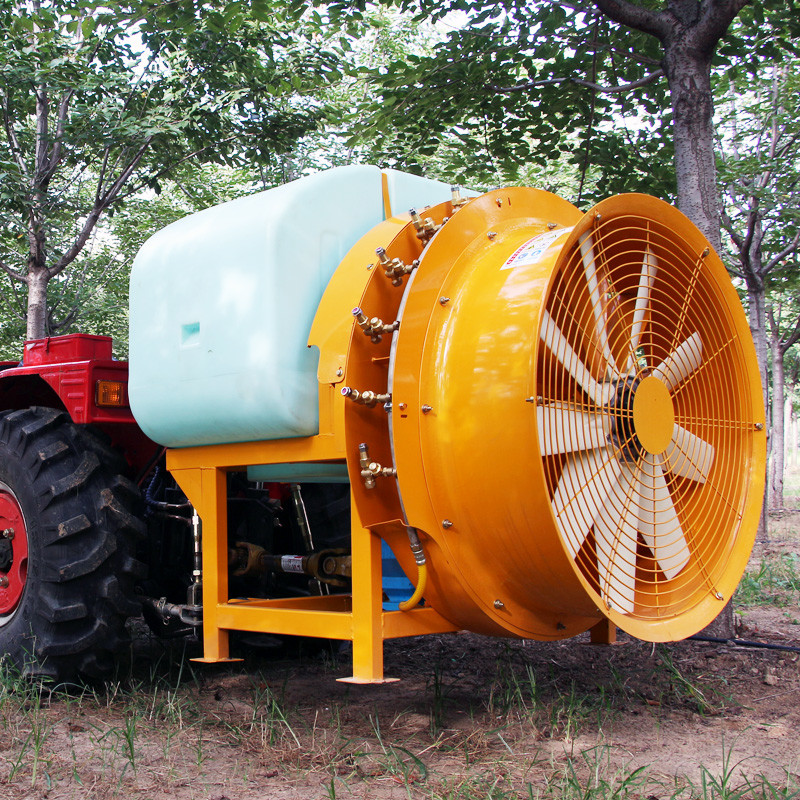

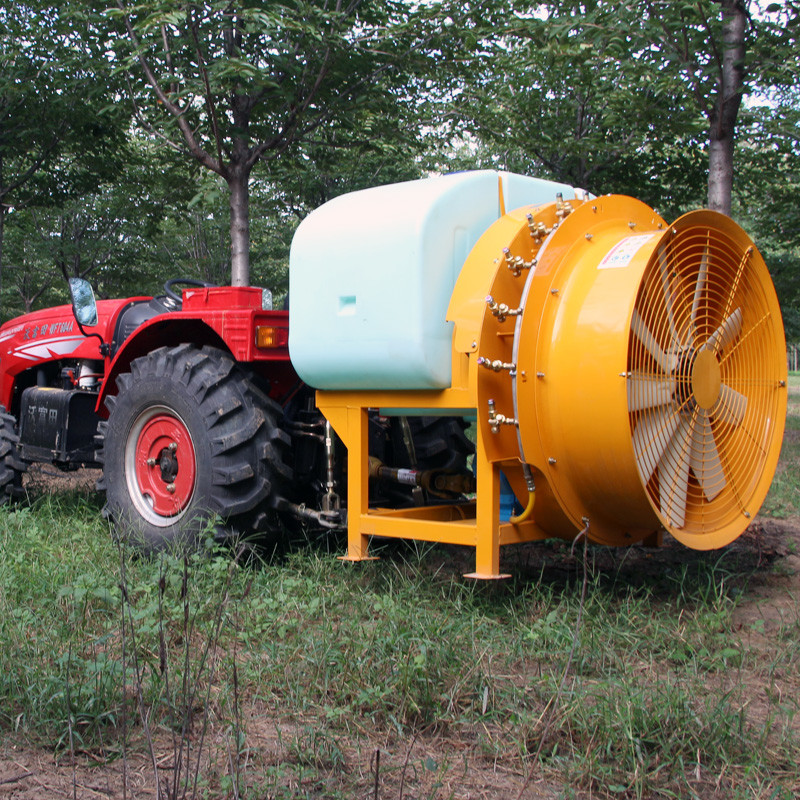

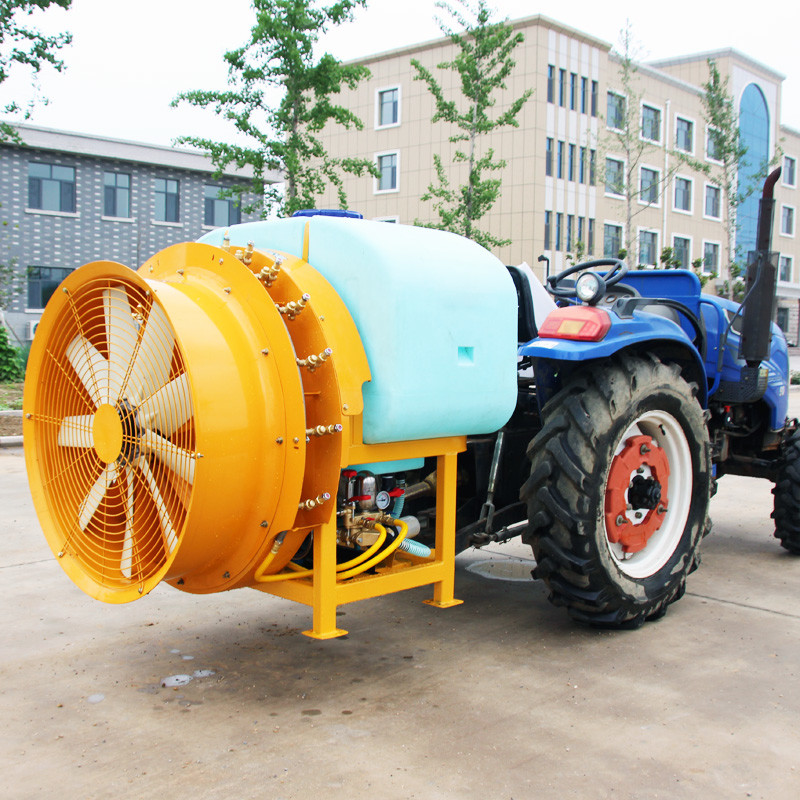

Orchard Pesticide Sprayer Air Mist Blower Tractor Suspension Orchard Pesticide Sprayer Small Orchard Sprayer
The nozzle angle can be adjusted, controlled in segments, and each segment can be opened or closed at will, with single side or fixed-point spraying. This machine is suitable for efficient pesticide spraying in orchards; Such as apples, date trees, bananas, citrus, pear trees, etc.
The suspended air supply orchard spray is matched with the tractor and connected with the rear suspension of the tractor for suspension operation. The PTO transmission shaft drives the spray pump and the spray blower to work at the same time. Adopting a simple suspension method to enhance operability and passability, with a simple mechanical transmission, the driver can easily operate independently. During the movement of the machine, under the joint action of the medium pressure fan and the high-pressure medicine pump, the medicine liquid is uniformly atomized, and the mist droplets are extremely fine. With the help of strong and soft air flow, the front and back sides of the inner and outer layers of branches and leaves quickly attach the medicine liquid, saving water and medicine up to 10-55%.
