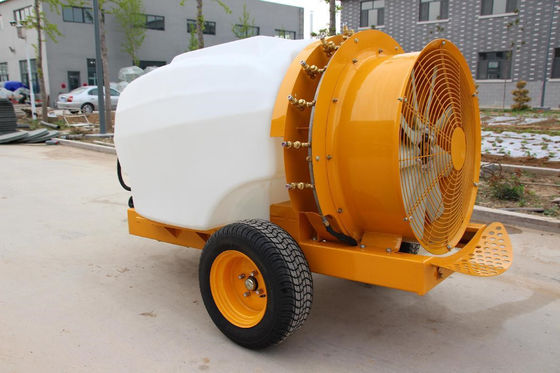

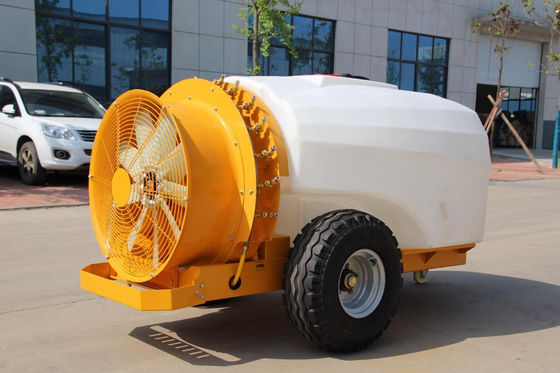

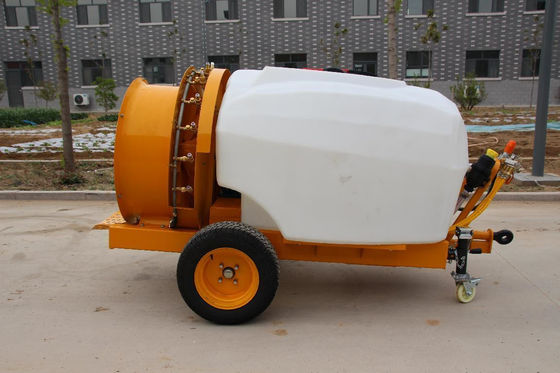

Trailer Type Airblast Orchard Sprayer Tractor Spraying Equipment
| Place of Origin | China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-OS-JY3WF-1100-WL |
| Minimum Order Quantity | 1 piece |
| Price | 2578$ |
| Packaging Details | Export wooden packaging |
| Delivery Time | 15-20 days |
| Payment Terms | L/C, D/A, T/T, Western Union |
| Supply Ability | 2000 pieces/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Orchard Spraying | Wheels | Pneumatic |
|---|---|---|---|
| Model | Sprayer | Type | Agricultural Equipment |
| Pump Type | Diaphragm Pump | Spray Distance | 9 M |
| Tank Material | Polyethylene | Spray Nozzles | 12-14 Units |
| Power | PTO | Tank Capacity | 800L-1600L |
| Machinery Test Report | Provided | Video Outgoing-inspection | Provided |
| Warranty | 1year | ||
| Highlight | Airblast Orchard Sprayer,Trailer Type Orchard Sprayer,Orchard Sprayer Tractor Spraying Equipment |
||
You can tick the products you need and communicate with us in the message board.
| Number of nozzles |
|---|
Product Description
Trailer Type Orchard Sprayer Tractor Spraying Equipment Field Sprayer Air Blast Sprayer
Orchard Sprayer

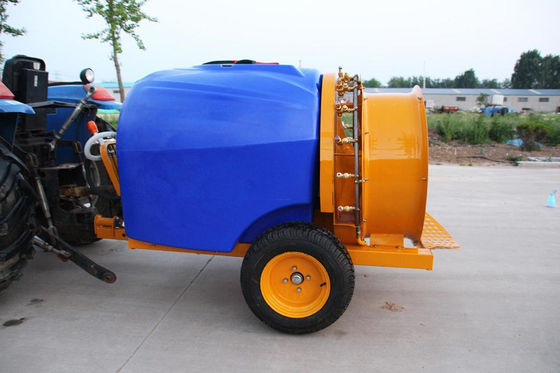

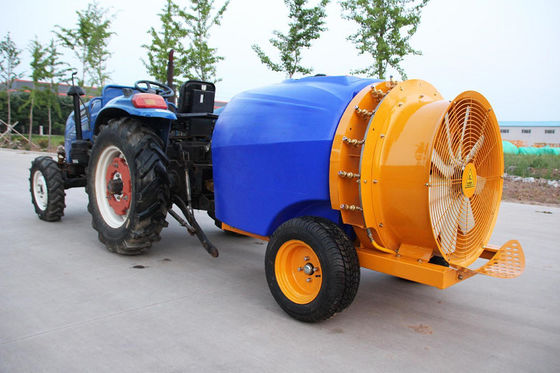

This orchard sprayer suspended air supply orchard spray is matched with the tractor and connected with the rear suspension of the tractor for suspension operation. The PTO transmission shaft drives the spray pump and the spray blower to work at the same time. Adopting a simple suspension method to enhance operability and passability, with a simple mechanical transmission, the driver can easily operate independently. During the movement of the machine, under the joint action of the medium pressure fan and the high-pressure medicine pump, the medicine liquid is uniformly atomized, and the mist droplets are extremely fine. With the help of strong and soft air flow, the front and back sides of the inner and outer layers of branches and leaves quickly attach the medicine liquid, saving water and medicine up to 10-55%.
This orchard sprayer is designed to work in a fan-shaped manner, and under the push of high-pressure airflow, it forms a continuous atomization work belt with a 270 ° fan-shaped expansion, ensuring that there are no dead corners after spraying in the orchard. The spraying area can reach more than 20 acres per hour. It adopts a wide leaf fan, stable wind pressure, large air volume, good penetration, and does not damage the fruit.
| Model | JY3WF-800 | JY3WF-1100 | JY3WF-1600 |
| Overall dimensions (mm) | 2140*1300*1300 | 2260*1290*1380 | 3000*1450*1400 |
| Tank capacity | 800L | 1100L | 1600L |
| Required tractor power | >18HP | >30HP | >40HP |
| Spray height | >8M | >8M | >9M |
| Spray width | >16M | >16M | >18M |
| spray pump | diaphragm pump | diaphragm pump | diaphragm pump |
| Liquid pump flow | 80L/min | 80L/min | 100-130L/min |
| Fan diameter | 800mm | 800mm | 800mm和900mm |
| input speed | ≤540 RPM | ≤540 RPM | ≤540 RPM |
| Spray control method | Segmented control/can be turned off independently | Segmented control/can be turned off independently | Segmented control/can be turned off independently |
| Number of nozzles | 12 pieces | 12 pieces | 14 pieces |
