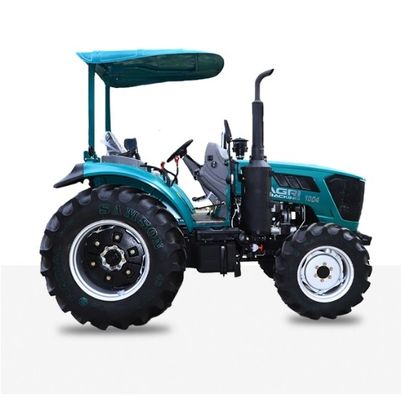

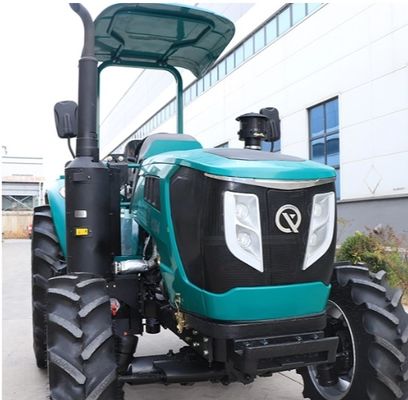

50HP Farm Tractor Equipment Orchard Tractor 4WD Small Four Wheel Drive Tractors
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-AG504-YQ |
| Minimum Order Quantity | 1 unit |
| Price | $6435 per unit |
| Packaging Details | Iron frame or iron frame with plywood |
| Delivery Time | 7-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 3E22YT51P504 | Fuel Capacity | 40 Gallons |
|---|---|---|---|
| Starting Method | Electricity | Gear Shifts | 8+8 |
| Warranty | 3 Years/3000 Hours | Port | Qingdao |
| Horsepower | 50 Hp | Name | Farm Tractor Equipment Orchard Tractor |
| Highlight | 50HP Farm Tractor Equipment,Farm Tractor Equipment Orchard Tractor,CE Small Four Wheel Drive Tractors |
||
Product Description
4WD 50HP Agricultural Tractor Orchard Tractor Small Four Wheel Garden Tractor
Product Description:
AG504 tractor adopts YTO Engine,12+12 side synchronizer shuttle shift. It is an agricultural model developed for medium and small farms. It is equipped with a high-torque four-cylinder engine, and It is perfectly integrated, more efficient, and more fuel-efficient. Simultaneously, it is equipped with a more robust chassis and synchronizer gearbox, making the operation smoother and bringing more robust durability and reliability. B series compact tractors have the characteristics of high comfort, strong power, efficient work, and responsiveness, bringing you a new experience of high efficiency, multi-function, strong power, and comfortable operation.
Technical Parameters:
| Model | 504 | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H(mm): | 3980x1760x2800 | ||
| Wheel Track (mm) | Front | 1400/1450/1500/1550 | |
| Rear | 1300-1700 | ||
| Wheel Bass(mm) | 2010 | ||
| Ground Clearance (mm) | 308 | ||
| Rated Traction Force(N) | 9800 | ||
| Construction Mass(kg) | 2200 | ||
| Theoretical Speed (km/h) | Forward | 2.46—32.73 | |
| Reverse | 2.15—28.69 | ||
Engine | Model | 3E22YT51P504 | |
| Type | 4-Cylinder Vertical,water cooled,4 stroke cycle | ||
| Rated Power(kw/hp) | 37/50 | ||
| Rated Speed (rpm) | 2400 | ||
| Bore×Stroke (mm) | 90×100 | ||
| Total Displacement(L) | 2.55 | ||
Drive | Clutch | 10" dual-stage | |
| Gear Box | (1+1)×4x3 | ||
Traveling | Tyre | Front | 280/85R20 |
| Rear | 380/85R30 | ||
| Steering Gear | Full Hydraulic Steering | ||
| Brake | Disc type | ||
Working | Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 7800 |
| 3-Point Suspension | Category:I | ||
| P.T.O Shaft | Rotating | 540/1000 | |
| Spline Size | 6-∮35Rectangular Spline | ||
Features:
Packing and Shipping:
Packaging and Shipping for Tractor
When purchasing a tractor, it is important to consider the packaging and shipping process to ensure that your product arrives safely and in good condition. Below are the steps involved in the packaging and shipping of a tractor:
- Packaging: The tractor will be carefully packaged in a sturdy and secure crate to protect it during transportation. The crate will be made of strong materials to withstand any potential damage during handling and shipping.
- Protection: To further protect the tractor, it will be wrapped in heavy-duty plastic or bubble wrap to prevent any scratches or dents during transit.
- Labeling: The crate will be labeled with clear and visible markings, including the product name, shipping address, and handling instructions.
- Shipping: The tractor will be shipped via a reliable and reputable transportation company that specializes in heavy equipment transportation. The shipping method will depend on the size and weight of the tractor, as well as the destination.
- Tracking: Once the tractor has been shipped, you will receive a tracking number to monitor its journey and estimated delivery date.
- Delivery: Upon arrival, the tractor will be carefully unloaded and delivered to your specified location. It is important to have a designated area prepared for delivery, such as a flat and level surface, to ensure a smooth unloading process.
By following these steps, we guarantee that your tractor will be packaged and shipped with the utmost care and attention, so that it arrives at your doorstep in perfect condition.
