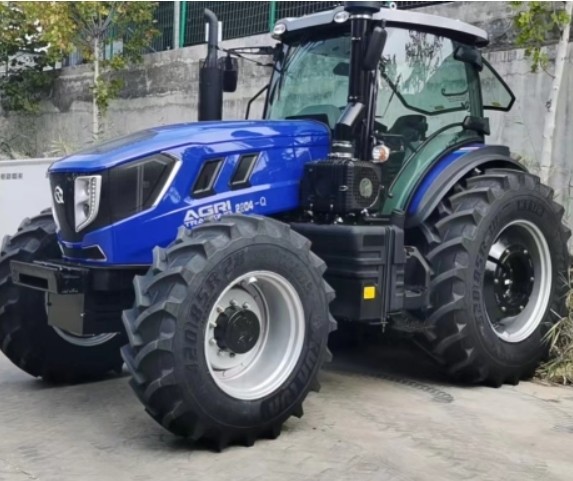

220HP Agriculture Machine Tractor 4WD Big Size 12 Gear Shifts
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JW-2204-Q-YQ |
| Minimum Order Quantity | 1 unit |
| Price | $25780-28750 per unit |
| Packaging Details | Iron frame or iron frame with plywood |
| Delivery Time | 7-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Transmission Box | Mechanic Gear Box | Drive Type | Gear Drive |
|---|---|---|---|
| Gear Shifts | 12+12 | Pto Speed | 540/1000 |
| Rated Traction Force | 22000N | Lights | LED Lighting Package |
| Machinery Test Report | Provided | Engine | YUCHAI |
| Highlight | 220HP Agriculture Machine Tractor,Agriculture Machine Tractor 4WD |
||
Product Description
40 Gallons Fuel Capacity Agricultural Tractor 12 Gear Shifts 220HP 4WD Big Size
Product Description:
2204 tractor ,Yuchai 220 horsepower A07 national III diesel engine, TC reinforced chassis, air-conditioned cab, two-speed PTO (760/850or 540/1000),24 + 8 synchronizer shift, LUK 14-inch reinforced double-acting clutch, three-way output of multi-way valve, separate distributor. Quick hitch suspension, adjustable steering wheel, chassis cooling system, Guhe 1123 front axle, reverse image, clutch power, imported seats, radial tire 420/85R28 + 650/65R38, front counterweight 60 KG * 13 rear counterweight 240KG
Features:
- Product Name: Agricultural Tractor
- Lights: LED Lighting Package
- Starting Method: Electricity
- Drive Type: Gear Drive
- Horsepower: 220 Hp
- Farm tractor
- Small farm tractors
- Farm and tractor
- Tractors for sale
Technical Parameters:
|
Tractor Parameters |
Model | 2204-Q | |
| Drive Type | 4WD | ||
| Overall Dimensions L×W×H(mm): | 5350x2385x3050 | ||
| Wheel Track (mm) | Front | 1720-2115 | |
| Rear | 1620-2420 | ||
| Wheel Bass(mm) | 2770 | ||
| Ground Clearance (mm) | 475 | ||
| Rated Traction Force(N) | 22000 | ||
| Construction Mass(kg) | 6700 | ||
| Theoretical Speed (km/h) | Forward | 2.46—32.73 | |
| Reverse | 2.15—28.69 | ||
|
Engine Specifications |
Model | YCA07260-T302 | |
| Type | 4-Cylinder Vertical,water cooled,4 stroke cycle | ||
| Rated Power(kw/hp) | 161.8/220 | ||
| Rated Speed (rpm) | 2200 | ||
| Total Displacement(L) | 7 | ||
|
Drive System |
Clutch | 14" dual-stage | |
| Gear Box | 24+8 | ||
|
Traveling Mechanism |
Tyre | Front | 420/85R28 |
| Rear | 520/85R38 | ||
| Steering Gear | Full Hydraulic Steering | ||
| Brake | Disc type | ||
|
Working Device |
Hydraulic System | Lifting Capacity at 610mm Behind Lift Point (N) | 28000 |
| 3-Point Suspension | Category:III | ||
| P.T.O Shaft |
Rotating Speed (rpm) |
540/1000 | |
| Spline Size | 6-∮35Rectangular Spline | ||
Packing and Shipping:
Packaging and Shipping for Agricultural Tractor
Packaging:
The Agricultural Tractor will be carefully packaged to ensure its safe arrival. The packaging materials used will vary depending on the size and weight of the tractor, but may include the following:
- Bubble wrap
- Cardboard boxes
- Wooden crates
- Strapping tape
- Protective foam
The tractor will be securely placed inside the packaging, with extra padding and supports added as needed to prevent any damage during transit.
Shipping:
The Agricultural Tractor will be shipped using a reliable and reputable freight carrier. The shipping method will be determined based on the delivery location and customer's preferences.
Once the tractor is loaded onto the shipping vehicle, the packaging will be double-checked to ensure it is secure and will not shift during transport.
The customer will be provided with a tracking number to monitor the progress of their shipment. Delivery times will vary depending on the destination, but our team will make every effort to ensure prompt and timely delivery.
Customs and Duties:
For international shipments, the customer will be responsible for any customs and duties charges that may apply. These charges are not included in the shipping cost and will be determined by the customs office of the destination country.
Thank you for choosing our Agricultural Tractor. We are committed to providing a high-quality product and ensuring its safe delivery to your location.
FAQ:
- Q: What is the brand name of this agricultural tractor?
A: The brand name of this agricultural tractor is Jawell. - Q: What is the model number of this agricultural tractor?
A: The model number is JW-YQ. - Q: Where is this agricultural tractor produced?
A: This agricultural tractor is produced in Shandong, China. - Q: Does this agricultural tractor have any certifications?
A: Yes, it is CE certified. - Q: What is the minimum order quantity for this agricultural tractor?
A: The minimum order quantity is 1 unit. - Q: Is the price of this agricultural tractor negotiable?
A: Yes, the price is negotiable. - Q: What are the packaging details for this agricultural tractor?
A: It can be packaged in either an iron frame or an iron frame with plywood. - Q: How long is the delivery time for this agricultural tractor?
A: The delivery time is 7 days, but can be negotiated. - Q: What are the accepted payment terms for this agricultural tractor?
A: The accepted payment terms are L/C, T/T, and Western Union. - Q: What is the supply ability for this agricultural tractor?
A: The supply ability is 300 units per month.
