Small Four Wheel Agriculture Tractor For Orchard And Garden Work
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JWLT504 |
| Minimum Order Quantity | 1 unit |
| Price | $5565-$7070 per unit |
| Packaging Details | Iron frame or iron frame with plywood |
| Delivery Time | 7-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | 504 | Type | Wheeled Type |
|---|---|---|---|
| Motor | Dongfanghong Or Yunnei | Number Of Cylinders | 4 |
| Gearbox | 8F+8R | PTO Shaft Speed | 540/760rpm Or 540/1000rpm |
| Power Take-off Spline | 6 Keys | ||
| Highlight | Garden Work Agriculture Tractor,Orchard Agriculture Tractor,Small Agriculture Tractor |
||
Product Description
Small Four Wheel Agriculture Tractor for Orchard and Garden Work
Product Description:
LT504 tractor adopts Dongfanghong Engine,8+8 side synchronizer shuttle shift. It is an agricultural model developed for medium and small farms. It is equipped with a high-torque four-cylinder engine, and It is perfectly integrated, more efficient, and more fuel-efficient. Simultaneously, it is equipped with a more robust chassis and synchronizer gearbox, making the operation smoother and bringing more robust durability and reliability.
Technical Parameters:
| 1 | motor | motor | Dongfanghong or Yunnei |
| power | 50hp | ||
| High-pressure common rail (two-stage discharge) | ● | ||
| Air intake mode | Inhale naturally | ||
| Preheating device | ● | ||
| Built-in PSD, dry air filter | ● | ||
| Oil-water separator | ● | ||
| Rated speed | 2400r/min | ||
| Number of cylinders | 4 | ||
| 2 | Transmission system | gearbox | 8F+8R |
| Synchronizer | ● | ||
| Main clutch | Single-acting clutch | ||
| PTO | Mechanical control | ||
| Differential lock | machine | ||
| PTO shaft speed | 540/760rpm or 540/1000rpm | ||
| Power take-off spline | 6 keys | ||
| 3 | Front egine | Red | ● |
| hood | |||
| 4 | Drive system | F/R adjustable steering | ● |
| Front axle (dry field) | ● | ||
| tyre | 7.5-16/11.2-28 | ||
| Rim color | Silver | ||
| Edge valve protection | ● | ||
| Vehicle Braking | Mechanical control | ||
| Drum brakes | |||
| Parking brake | Drum brakes | ||
| 5 | Hydraulics | Oil joint structure | ● |
| Double auxiliary cylinders | ● | ||
| Hydraulic output | 1 group | ||
| Hydraulic pump flow | 20L/min | ||
| category | Ⅱ | ||
| Maximum lifting force | 1500kgs | ||
| 6 | Counterweights | Front (weight * quantity). | 12Kg*6 |
| Rear (weight * quantity). | 20Kg*4 | ||
| 7 | Electrical system | Instrument cluster (LCD screen, speedometer, tachometer, water temperature, fuel gauge, chronograph, oil pressure, etc.) | ● |
| Maintenance-free battery | 120AH | ||
| LED work lights | ● | ||
| Rotary warning lights | ● | ||
| Rear license plate lights | ● | ||
| 8 | fuel tank | capacity | 60L |
| 9 | Speed | Maximum speed | 40KM/H |
| 10 | veer | power steering | ● |
| 11 | Flat floor | Flat floor | ● |
| 12 | size | weight | 1800kg |
| Dimensions (LxWxH) | 3650×1500×2330mm | ||
| wheelbase | 1970mm | ||
| tread | The front wheel is 960mm-1300mm, and the rear wheel is 1000mm-1300mm | ||
| Minimum ground clearance | 315mm | ||
| 13 | Other | Antifreeze (-35). | ● |
| Diesel (10L). | ● |

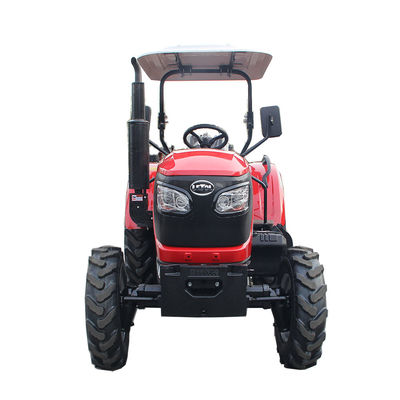

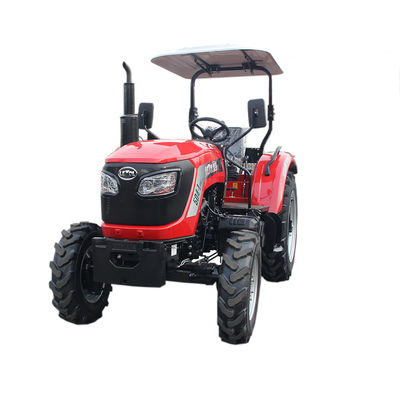

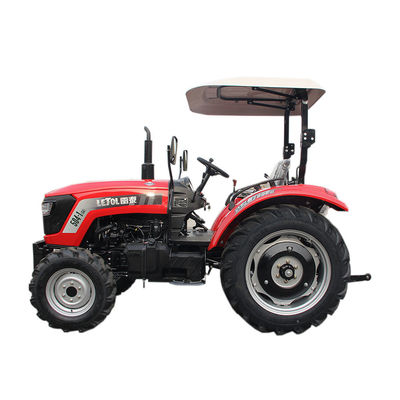

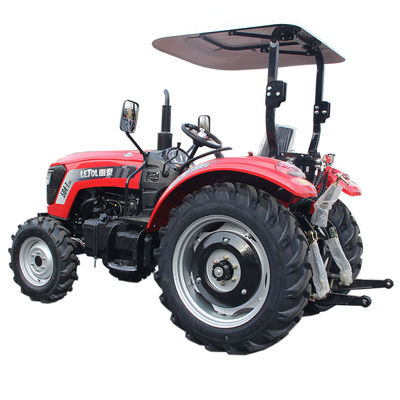

Detailed Photos:
Packing and Shipping:
Packaging and Shipping for Tractor
When purchasing a tractor, it is important to consider the packaging and shipping process to ensure that your product arrives safely and in good condition. Below are the steps involved in the packaging and shipping of a tractor:
- Packaging: The tractor will be carefully packaged in a sturdy and secure crate to protect it during transportation. The crate will be made of strong materials to withstand any potential damage during handling and shipping.
- Protection: To further protect the tractor, it will be wrapped in heavy-duty plastic or bubble wrap to prevent any scratches or dents during transit.
- Labeling: The crate will be labeled with clear and visible markings, including the product name, shipping address, and handling instructions.
- Shipping: The tractor will be shipped via a reliable and reputable transportation company that specializes in heavy equipment transportation. The shipping method will depend on the size and weight of the tractor, as well as the destination.
- Tracking: Once the tractor has been shipped, you will receive a tracking number to monitor its journey and estimated delivery date.
- Delivery: Upon arrival, the tractor will be carefully unloaded and delivered to your specified location. It is important to have a designated area prepared for delivery, such as a flat and level surface, to ensure a smooth unloading process.
FAQ:
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Weifang City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:7-15 days according to the different quantity.
