Top-Performing Agriculture Tractor For Your Farming Business
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JWLT904 |
| Minimum Order Quantity | 1 unit |
| Price | $16359-18028 per unit |
| Packaging Details | Iron frame or iron frame with plywood |
| Delivery Time | 10-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Engine | Dongfanghong Or Yunnei | Intake Method | Turbocharging |
|---|---|---|---|
| Rated Speed | 2400r/min | Number Of Cylinders | 4 |
| Gearbox | 12F+12R | Wheelbase | 2090mm |
| Ground Clearance | 370mm | ||
| Highlight | Farming Business Agriculture Tractor,Top Performing Agriculture Tractor |
||
Product Description
90HP Versatile Agriculture Tractor for Various Farming Applications
Product Description:
LT904tractor , 90HP,4WD, Dongfanghong or Yunnei engine,It is an agricultural model developed for medium and small farms. It is equipped with a high-torque four-cylinder engine, and It is perfectly integrated, more efficient, and more fuel-efficient. Simultaneously, it is equipped with a more robust chassis and synchronizer gearbox, making the operation smoother and bringing more robust durability and reliability.
Technical Parameters:
| 1 | Engine | Engine | Dongfanghong or Yunnei |
| Power | 90hp | ||
| Intake method | Turbocharging | ||
| Rated speed | 2400r/min | ||
| Number of cylinders | 4 | ||
| 2 | Transmission system | gearbox | 12F+12R |
| Synchronizer | ● | ||
| Main clutch | double acting clutch | ||
| PTO | mechanical control | ||
| Differential lock | mechanism | ||
| Power output shaft speed | 540/760rpm or 540/1000 | ||
| Power take-off spline | 8 or 6 keys | ||
| 3 | Front engine hood | New engine hood/red | ● |
| 4 | driving system | F/R adjustable steering | ● |
| Front axle (dry field) | ● | ||
| tire | 9.5-24/14.9-30 | ||
| Wheel color | silvery | ||
| Edge valve protection | ● | ||
| 5 | hydraulic system | Oil joint structure | ● |
| Dual auxiliary cylinder | ● | ||
| Hydraulic output | 2 groups | ||
| Hydraulic pump flow rate | 20L/min | ||
| category | Ⅱ | ||
| 6 | Counterweight | front | ● |
| back | ● | ||
| 7 | electrical system | Combination instrument panel (LCD screen, speedometer, tachometer, water temperature, fuel gauge, timing gauge, oil pressure, etc.) | ● |
| Maintenance free battery | 120AH | ||
| LED Working Light | ● | ||
| Rotating warning light | ● | ||
| Rear license plate light | ● | ||
| 8 | tank | capacity | 120L |
| 9 | speed | maximum speed | 30.25KM/H |
| 10 | size | weight | 3200kg |
| Dimensions (length x width x height) | 4190x1790x2680mm | ||
| wheelbase | 2090mm | ||
| Track width | Front wheel 1300mm, rear wheel adjustable 1300mm-1400mm | ||
| Ground clearance | 370mm |

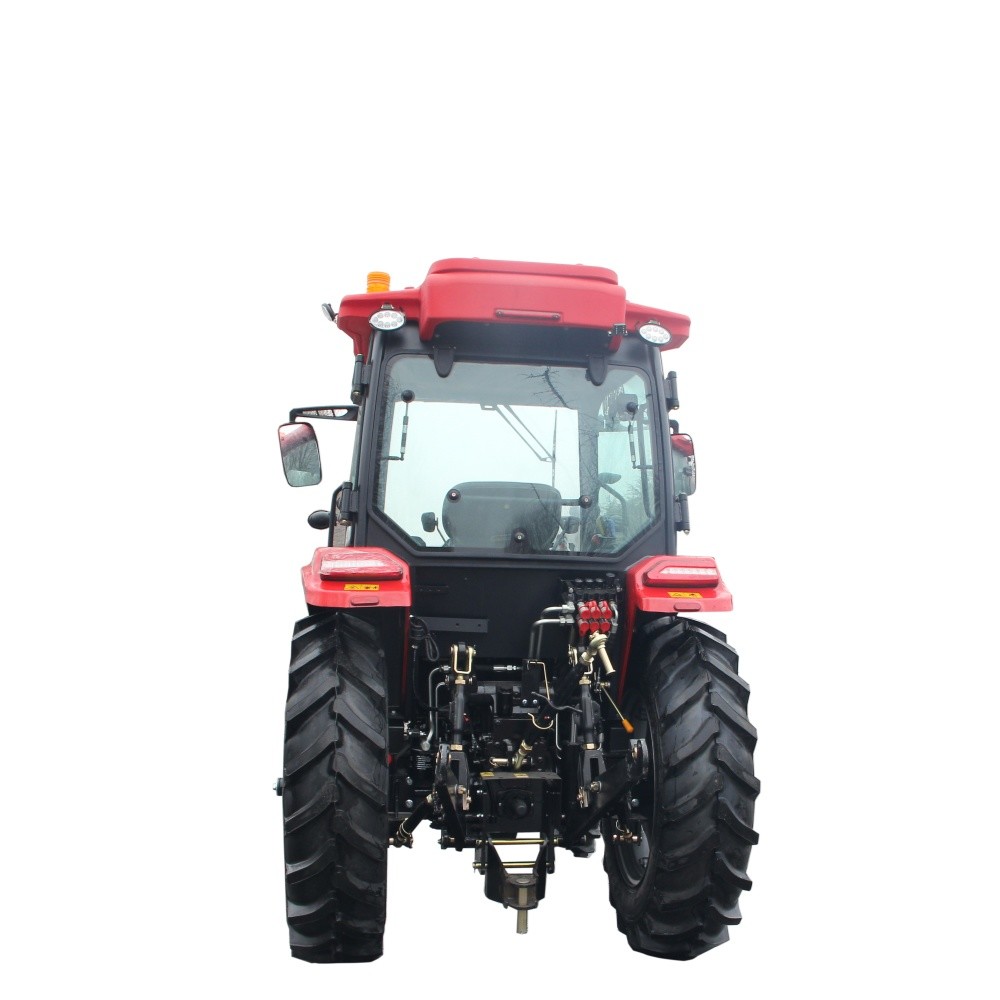

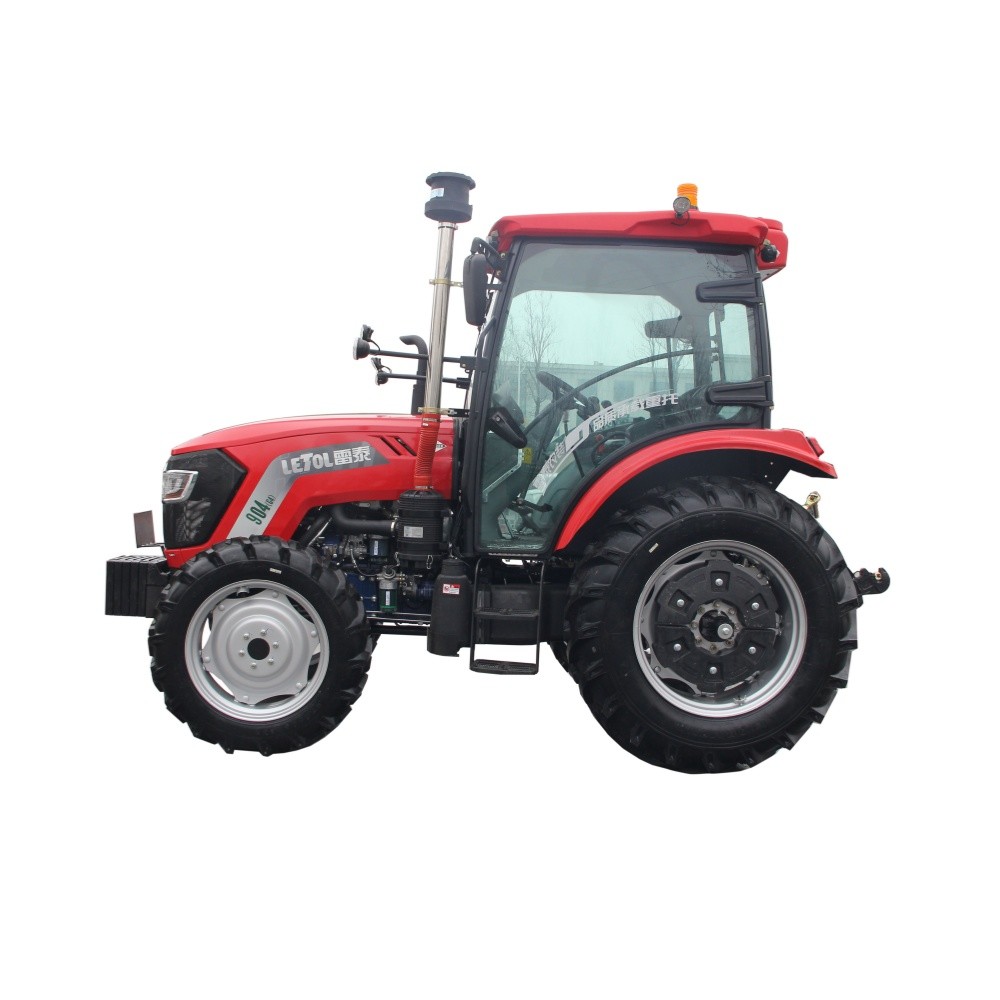

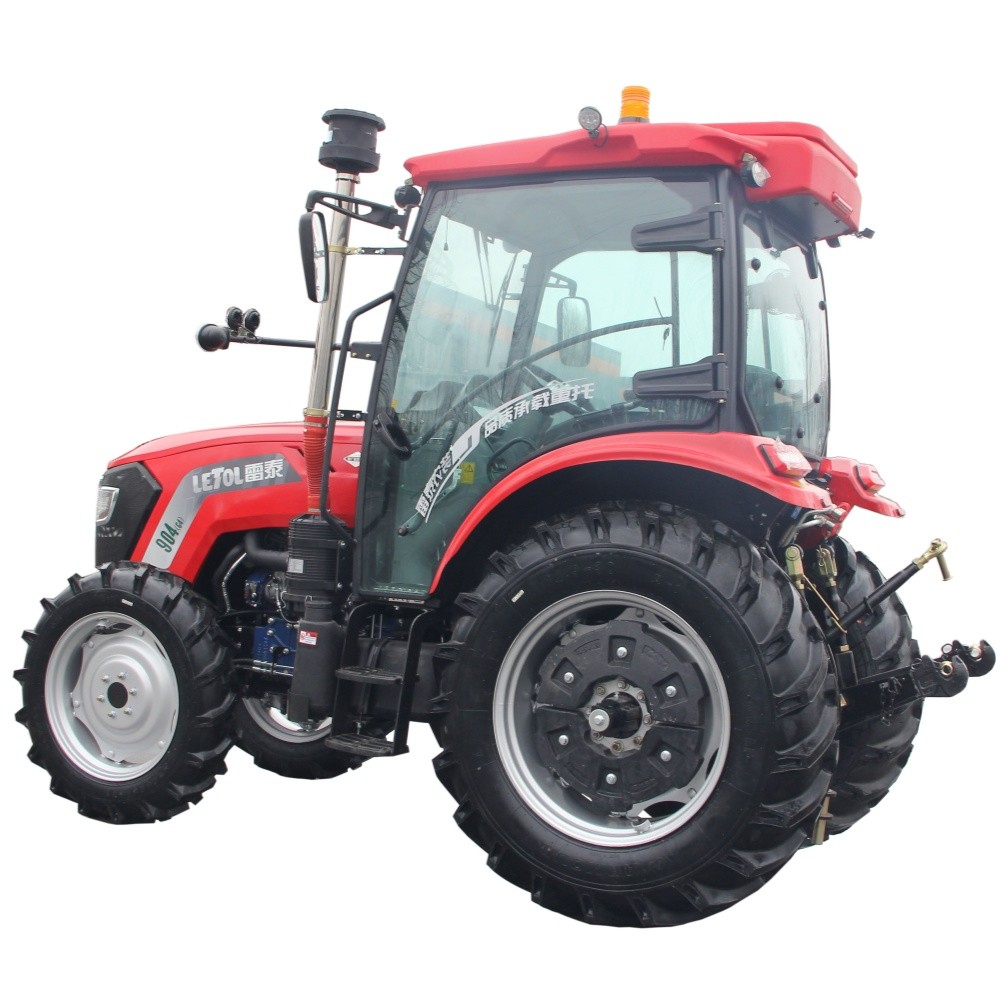

Detailed Photos:
Packing and Shipping:
FAQ:
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Weifang City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:10-25 days according to the different quantity.
