2400r/min 4WD Agriculture Tractor For Farming Needs
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JWLT504-1 |
| Minimum Order Quantity | 1 unit |
| Price | $5565-$7070 per unit |
| Packaging Details | Iron frame or iron frame with plywood |
| Delivery Time | 7-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Horsepower | 50 Hp | Number Of Gears (Forward/Backward) | 8+8 |
|---|---|---|---|
| Engine Calibration Speed | 2400r/min | Number Of Splines Of Power Take Off Shaft | 8 Or 6 |
| Tyre Model (Front/Rear) | 6.5-16/9.5-24 | ||
| Highlight | 4WD Agriculture Tractor,Farming Needs Agriculture Tractor |
||
Product Description
50HP Agriculture Tractor for Small Farming and Gardening Needs
Product Description:
LT504-1 tractor adopts Dongfanghong Engine,8+8 side synchronizer shuttle shift. It is an agricultural model developed for medium and small farms. It is equipped with a high-torque four-cylinder engine, and It is perfectly integrated, more efficient, and more fuel-efficient. Simultaneously, it is equipped with a more robust chassis and synchronizer gearbox, making the operation smoother and bringing more robust durability and reliability.
Technical Parameters:
| Item | Uint | Specification |
| Power(hp) | / | 50 |
| Model | / | 504-1 |
| Type | / | Wheeled Type |
| Driving type | / | 4WD |
| External dimension (L×W×H) | mm | 3690×1500×2335mm |
| Wheel base | mm | 1970 |
| Commonly used wheel tread(Front/Rear) or gauge | mm | 1210/1180 |
| Wheel tread(Front/Rear) or gauge | mm | 1210,1310/1105-1430 |
| Minimum ground clearance and position | mm | 315(Bottom Of Front Axle) |
| Standard Counterweight (Front/Rear) | kg | Have |
| Number of gears (Forward/Backward) | / | 8+8 |
| Engine nominal power | kw | 36.8 |
| Engine calibration speed | r/min | 2400 |
| Tyre Model (Front/Rear) | / | 6.5-16/9.5-24 |
| Number of splines of power take off shaft | / | 8 Or 6 |
| Standard speed of power take off shaft | r/min | 540/720 or 540/1000 |

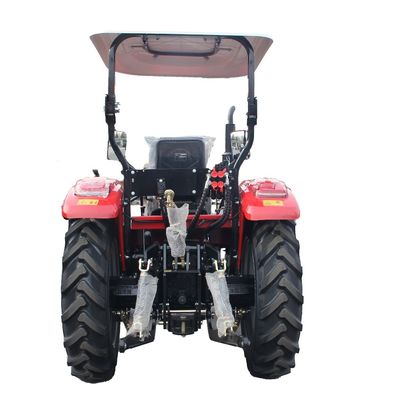

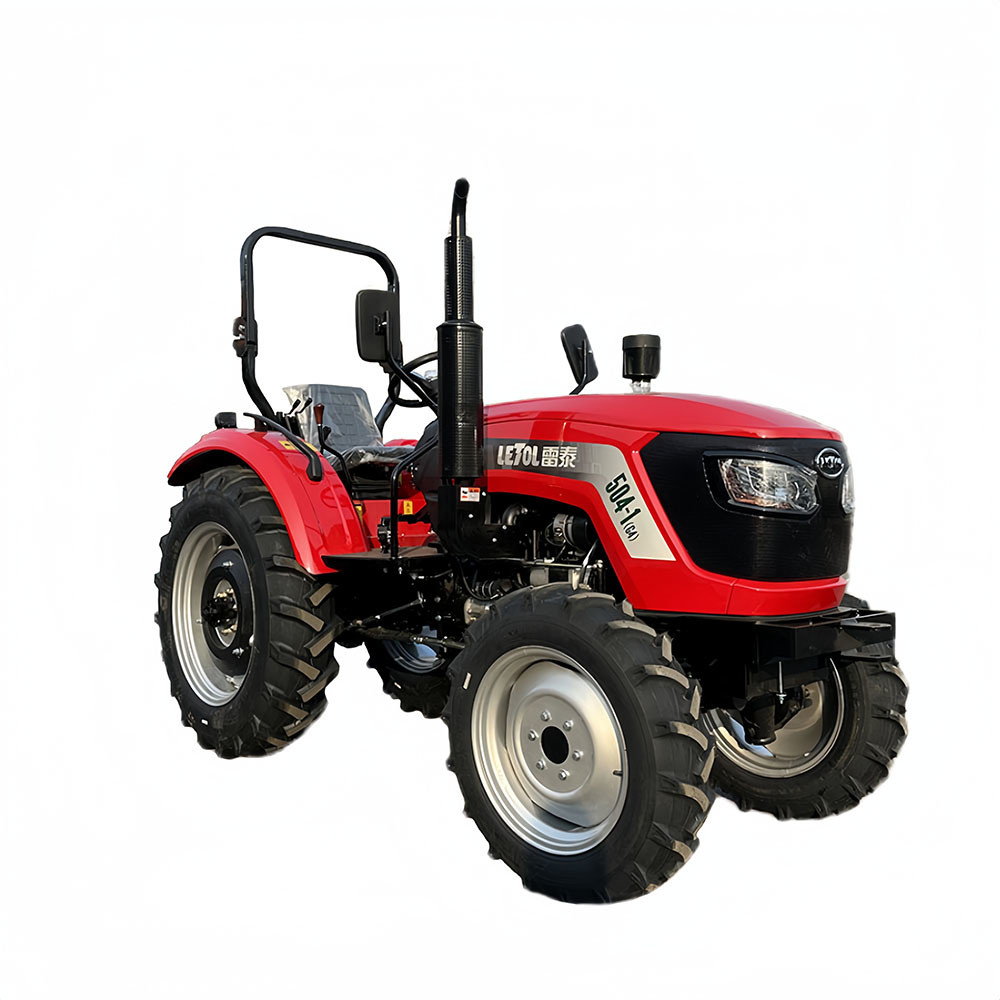

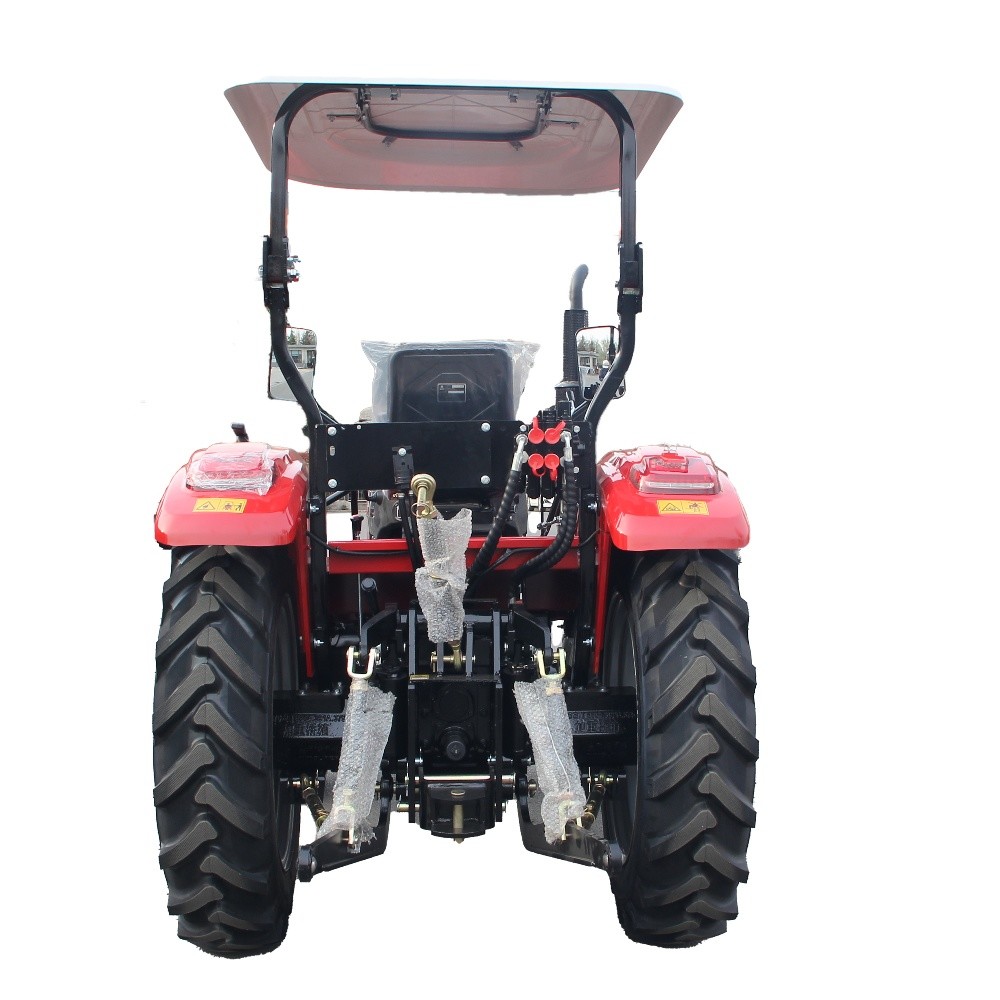

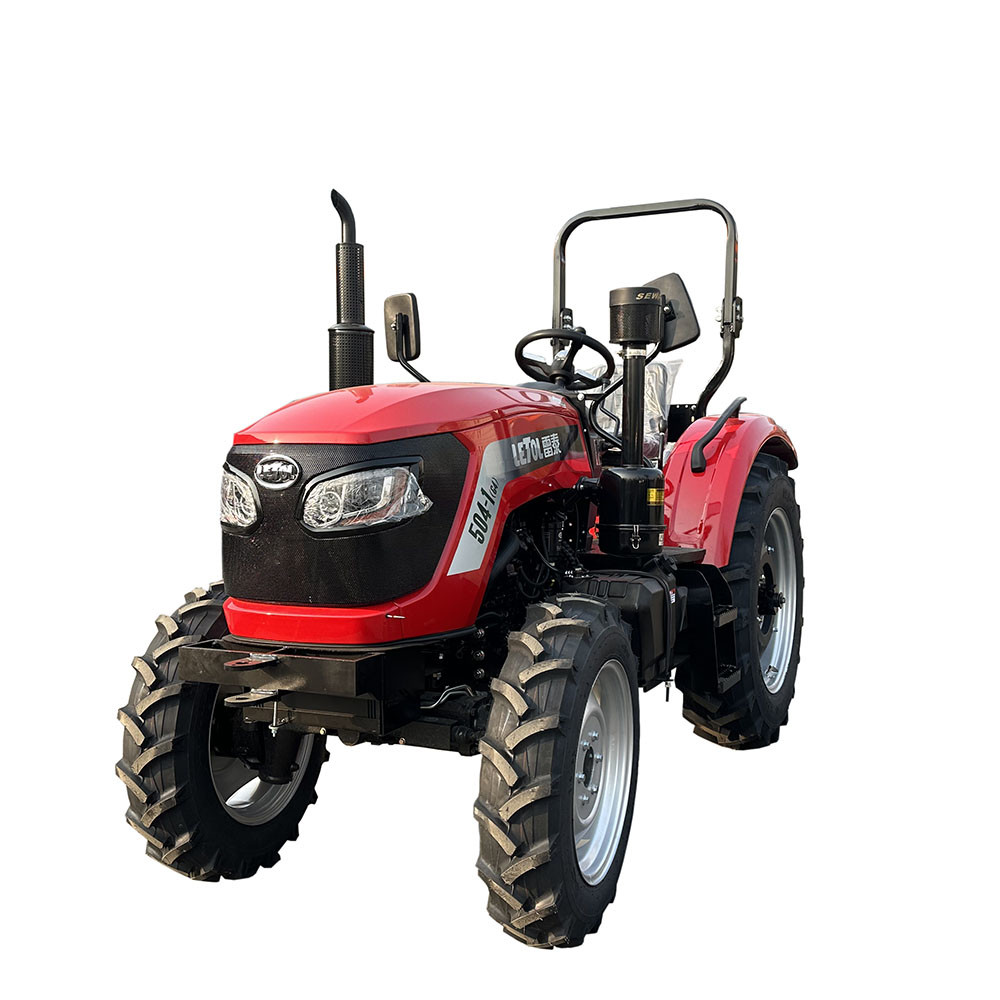

Detailed Photos:
Packing and Shipping:
Below are the steps involved in the packaging and shipping of a tractor:
- Packaging: The tractor will be carefully packaged in a sturdy and secure crate to protect it during transportation. The crate will be made of strong materials to withstand any potential damage during handling and shipping.
- Protection: To further protect the tractor, it will be wrapped in heavy-duty plastic or bubble wrap to prevent any scratches or dents during transit.
- Labeling: The crate will be labeled with clear and visible markings, including the product name, shipping address, and handling instructions.
- Shipping: The tractor will be shipped via a reliable and reputable transportation company that specializes in heavy equipment transportation. The shipping method will depend on the size and weight of the tractor, as well as the destination.
- Tracking: Once the tractor has been shipped, you will receive a tracking number to monitor its journey and estimated delivery date.
- Delivery: Upon arrival, the tractor will be carefully unloaded and delivered to your specified location. It is important to have a designated area prepared for delivery, such as a flat and level surface, to ensure a smooth unloading process.
FAQ:
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5:How about the delivery time?
A5:7-15 days according to the different quantity.
