LT904 90HP 4WD Agriculture Tractor With High-Torque Engine And AC Cab
| Place of Origin | Shandong China |
|---|---|
| Brand Name | Jawell |
| Certification | CE |
| Model Number | JWLT904 |
| Minimum Order Quantity | 1 unit |
| Price | $16359-18028 per unit |
| Packaging Details | Iron frame or iron frame with plywood |
| Delivery Time | 10-To be negotiated |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200 units per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Weight | 3200kg | Dimensions (length X Width X Height) | 4190x1790x2680mm |
|---|---|---|---|
| Wheelbase | 2090mm | Ground Clearance | 370mm |
| Hydraulic Pump Flow Rate | 20L/min | Hydraulic Output | 2 Groups |
| Highlight | 90HP Agriculture Tractor,AC Cab Agriculture Tractor,High-Torque Agriculture Tractor |
||
Product Description
90HP Versatile Agriculture Tractor for Various Farming Applications
Product Description:
LT904tractor , It is an agricultural model developed for medium and small farms. It is equipped with a high-torque four-cylinder engine, and It is perfectly integrated, more efficient, and more fuel-efficient. Simultaneously, it is equipped with a more robust chassis and synchronizer gearbox, making the operation smoother and bringing more robust durability and reliability. LT series compact tractors have the characteristics of high comfort, strong power, efficient work, and responsiveness, bringing you a new experience of high efficiency, multi-function, strong power, and comfortable operation.
Technical Parameters:
| 1 | Engine | Engine | Dongfanghong or Yunnei |
| Power | 90hp | ||
| Intake method | Turbocharging | ||
| Rated speed | 2400r/min | ||
| Number of cylinders | 4 | ||
| 2 | Transmission system | gearbox | 12F+12R |
| Synchronizer | ● | ||
| Main clutch | double acting clutch | ||
| PTO | mechanical control | ||
| Differential lock | mechanism | ||
| Power output shaft speed | 540/760rpm or 540/1000 | ||
| Power take-off spline | 8 or 6 keys | ||
| 3 | Front engine hood | New engine hood/red | ● |
| 4 | driving system | F/R adjustable steering | ● |
| Front axle (dry field) | ● | ||
| tire | 9.5-24/14.9-30 | ||
| Wheel color | silvery | ||
| Edge valve protection | ● | ||
| 5 | hydraulic system | Oil joint structure | ● |
| Dual auxiliary cylinder | ● | ||
| Hydraulic output | 2 groups | ||
| Hydraulic pump flow rate | 20L/min | ||
| category | Ⅱ | ||
| 6 | Counterweight | front | ● |
| back | ● | ||
| 7 | electrical system | Combination instrument panel (LCD screen, speedometer, tachometer, water temperature, fuel gauge, timing gauge, oil pressure, etc.) | ● |
| Maintenance free battery | 120AH | ||
| LED Working Light | ● | ||
| Rotating warning light | ● | ||
| Rear license plate light | ● | ||
| 8 | tank | capacity | 120L |
| 9 | speed | maximum speed | 30.25KM/H |
| 10 | size | weight | 3200kg |
| Dimensions (length x width x height) | 4190x1790x2680mm | ||
| wheelbase | 2090mm | ||
| Track width | Front wheel 1300mm, rear wheel adjustable 1300mm-1400mm | ||
| Ground clearance | 370mm |

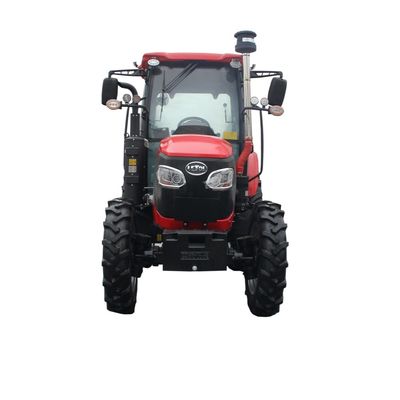

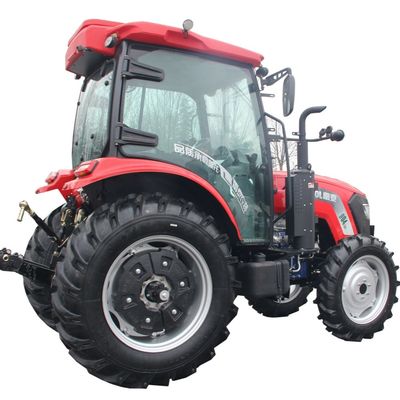

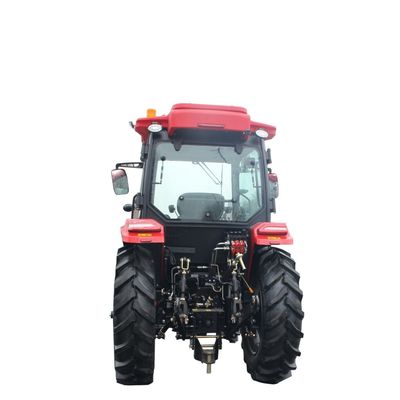

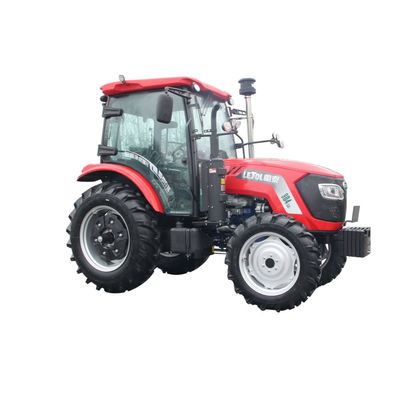

Detailed Photos:
Packing and Shipping:
Packaging and Shipping of Agricultural Tractor
The Agricultural Tractor will be carefully packaged to ensure its safe arrival to our customers. Here is the packaging and shipping process:
Packaging Process:
- The Agricultural Tractor will be wrapped in a protective layer to prevent any scratches or damage during transportation.
- It will then be placed in a sturdy cardboard box with additional padding to provide extra protection.
- The box will be sealed and labeled with the product name, model number, and customer's address.
Shipping Process:
Once the Agricultural Tractor is packaged, it will be shipped using a reliable and efficient shipping service. Here are the steps we will take to ensure a smooth delivery:
- We will check all necessary documents and clearances for international shipments, if applicable.
- The tractor will be loaded onto a secure and well-maintained truck for land transportation.
- If the tractor is being shipped overseas, it will be loaded onto a cargo ship.
- During the shipping process, we will continuously monitor the tractor's progress and provide updates to the customer.
- Upon arrival at the destination, the tractor will be carefully unloaded and delivered to the customer's address.
At Agricultural Tractor, we take great care in packaging and shipping our products to ensure their safe arrival. If you have any questions or concerns about the packaging and shipping process, please don't hesitate to contact us. We are dedicated to providing the best service possible for our customers.
FAQ:
Q1:Are you the factory or the trading company?
A1:We are the factory,we located in Weifang City,Shandong Province,China.
Q2:What after-sales service can your company provide?
A2We can provide technical support and on-site installation support!
Q3:Can you provide spare parts for free?
A3:Of course.
Q4:Can you provide OEM?
A4:Yes,we can.
Q5:How about the delivery time?
A5:10-25 days according to the different quantity.
